The case of the Fiddler heisenbug

There is a presentation I give to our graduates during their first week with us, the second slide is:

EverythingYouKnowIsWrong

This is taken from the multi-media overload that was U2s Zoo TV tour. I use it to try to get our graduates to accept that they are really back at the start of their learning process. This is pretty much how I felt a week or two back when one of our consultants said that they were seeing lots of HTTP 401 authentication traffic while our application was running. I’d personally spent a lot of time over the years trying to make sure that we were as efficient as possible so I was sceptical to say the least…

Background

The services architecture for the product I work on follows the Command Query Responsibility Separation approach which I’ve talked about before. In summary we fetch data from an OData service provided by WCF Data Services and then make updates via a suite of services implemented using regular SOAPy WCF. We closely monitor the message exchange between our applications and services to ensure that we aren’t too chatty, messages aren’t too big and so on – we do this using the excellent Fiddler. Many moons ago, I spent quite some time getting my head around how to correctly configure IIS and WCF to use Kerberos to allow the services to be scaled out over a web farm. By now I’ve run through this on numerous test environments and real world environments so I was pretty confident I know how it works.

The Problem

Our software runs on-premise within the walled garden of the corporate network. We support some of the largest law firms in the world and so on occasion have to deal with some very wide area networks. The connection from desktop to server can take place over long distances with the characteristics of high latency and low bandwidth; any messaging overhead can be painful. For years now we’ve used Fiddler to look at our services as all the call activated services use HTTP. At one client, Fiddler was not working [which turned out to be a conflict with the McAfee software they used] and so they used Wireshark instead. When observing the HTTP traffic in Wireshark, our consultants and the client saw many HTTP 401 authentication responses, far more than we expected. Each 401 response results in additional latency delay and requires additional messages to be exchanged between the client and the server. In our testing to date, we believed we had tuned the services to require only a single 401 authentication response and then to cache and present the credentials on each subsequent request.



TL;DR

To stop a WCF Data Services request, secured using Windows Authentication, requiring authentication on every call – you need to set the PreAuthenticate flag to true on the HttpWebRequest via the SendingRequest2 event on the generated context. Fiddler (and Web Proxy in the Microsoft Message Analyzer) hides this from you because it implements a connection pool of Keep Alive connections.



Reproducing the issue

The first task was to reproduce the behaviour inside one of our test environments. I’m fortunate to have a very well spec’d HP Z420 on my desk which is a great Hyper-V server. Inside Hyper-V I have a private domain set up which has a couple of load balanced application servers running our software. First off, I ran the client software on both Windows 7 and Windows 8.1 with Fiddler running in the background, no sign of the additional 401s. I then switched over to using a lower level network monitoring but rather than using Wireshark, I decided to try out the Microsoft Message Analyzer. This is Microsoft’s replacement for the Network Monitor tool, it provides a number of different filters, two of which were of interest:

  • web proxy – same deal as Fiddler, looking at HTTP
  • local link layer – all traffic on the NIC

Using the web proxy produced the same results as Fiddler however using the local link layer filter showed lots of additional 401 responses – when I ran the Message Analyzer with both web proxy and the local link layer filters there was no additional 401s. We had hit a Heisenbug, when observing the HTTP traffic through a web proxy, the proxy was changing the behaviour of the traffic.

Confirm our current understanding

My faith in our current collective understanding of what was happening was pretty shaken so I ran through the various settings that I previously thought would avoid these 401s:

1. Is the URL of the service trusted? Windows must consider the service URL to be trusted to pass Kerberos tickets. Any easy way to check the zone of any URL is the following code snippet:

var zone = System.Security.Policy.Zone.CreateFromUrl("http://wsakl001013.ap.aderant.com/Expert_Local");
Console.WriteLine(zone.SecurityZone);

If necessary, add the service host URL or a matching pattern to the Local Intranet Zone via IE:

In this example, *.aderant.com has been added to the local intranet zone.



2. Are the load balanced services running as a domain account? Does this account have an appropriate HTTP SPN registered against it?



3. Do the various IIS web applications have the useAppPoolCredentials flag set in configuration? This instructs IIS to expect the Kerberos SGT (service granting ticket) to be encrypted using the credentials of the account used by the mapped application pool, rather than the default machine account.



4. Is Kerberos configured to use a transport session rather than a connection per call for authentication? This is set in IIS against the web application using the authPersistNonNTLM setting.

This adds a Persistent-Auth header to the HTTP response (seen here using Message Analyzer):

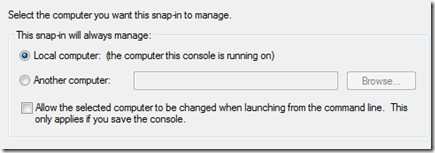

These settings are available from within the IIS Manager using the Configuration Editor:

IISConfigEditor

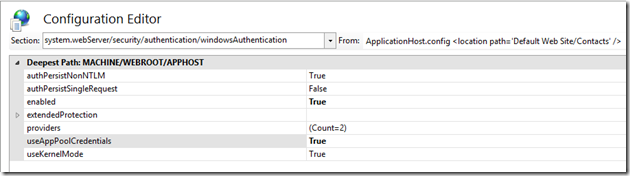

Navigate to the system.webServer/security/authentication/windowsAuthentication settings:


Set the properties as required. If you want to programmatically set these values via script, IIS will helpfully generate the scripts for you. Look over on the right hand side of the Configuration Editor and you’ll see a ’Generate Script’ option.

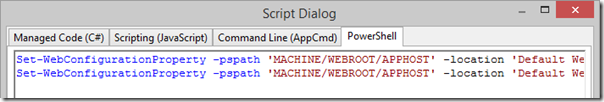

Clicking on this will generate a change script for you in a number of technologies, I tend to favour PowerShell:

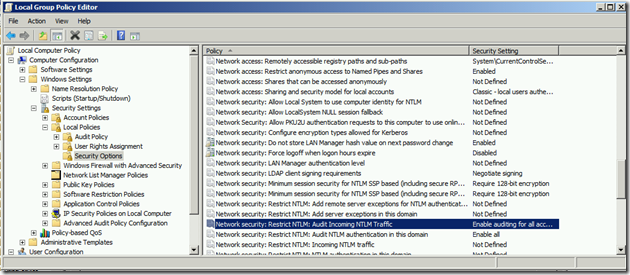

All this checked out on my environment but I wanted to ensure that NTLM was not in play (here). To do this I enabled NTLM logging on the domain controller using group policy. Using gpedit.msc, I enabled the ‘Network Security: Restrict NTLM: Audit Incoming NTLM Traffic’ and  ‘Network Security: Restrict NTLM: Audit NTLM authentication in this domain’ policies [under Windows Settings, Security Settings, Local Policies, Security Options]:


Interesting it showed that there was unexpected NTLM traffic – from the AppFabric services to the SQL Server. The MSSQLService was set-up to run as a domain account, service.sql, but the appropriate SPN had not been mapped to that account:

> setspn –a MSSQLSvc/SqlServer2012.expert.local:1433 service.sql

> setspn –a MSSQLSvc/SqlServer2012:1433 service.sql

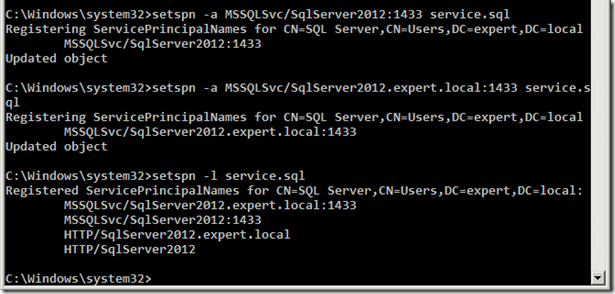

I mapped both the FQDN and the NETBIOS name formats just to be sure. This resolved the issue and I no longer saw NTLM traffic.


What Next?

At this point I thought the environment was configured as it should be but I was still seeing the additional 401s. After a lot of searching and head scratching I came across this post from Fiddler author, Eric Lawrence. The rub being:

Keep-Alive

In some cases, the time required to open a new network connection to the server is greater than the time required to send the request and download the response. Therefore, if the client opens a new connection for every request, the application’s performance is greatly degraded. The practice of reusing a single TCP/IP connection for multiple requests is called “keep-alive” and it’s the default behaviour in HTTP/1.1. However, clients or servers may choose to disable keep-alive by either sending a Connection: close header or by abruptly closing the connection after each transaction.

Fiddler maintains a “connection pool” of idle keep-alive connections to the server. When the a client request comes in, this pool is first checked to determine if an existing connection is available on which the request can be sent. Even if the client specifies a Connection: close request header, that only causes Fiddler to close the client’s connection after the response is sent—the server connection is returned to the pool (unless it too disabled keep-alive).

What this means is that if your client isn’t using Keep-Alive connections, its performance can be severely impacted. However, when Fiddler is introduced, performance is improved because “expensive” server connections are reused.(Since Fiddler and the client are (typically) running on the same computer, establishing a new connection from the client to Fiddler is very fast.)

The fix for this problem is simple: Ensure that your client is using KeepAlive connections. That’s as simple as:

  1. Ensure that you’re using HTTP/1.1
  2. Ensure that you haven’t disabled Keep-Alive (e.g. set the KeepAlive property of the HTTPWebRequest object to true)
  3. Don’t send Connection: Close headers

Note that creating connections to servers can be even more expensive than the simple TCP/IP establishment cost. First, there’s TCP/IP Slow-Start, a congestion-management feature of the protocol that means that new connections have a slower transfer rate than longer-lived connections. Next, if you’re using HTTPS, there’s an expensive cryptographic handshake which must be performed on each new connection. Lastly, if your connections use either the NTLM or Negotiate authentication protocols, you may find that each new connection requires a 3-step handshake (e.g. the server sends a HTTP/401 challenge, the client resends the request, the server sends another HTTP/401 challenge, the client resends the request with a challenge-response, and the server finally sends a HTTP/200). Because these are “connection-oriented” authentication protocols, subsequent requests over an existing connection may be able to avoid these extra round-trips.

Here is the heisenbug, Fiddler is maintaining a Keep-Alive connection to the server even though my call may not be.

So how does this relate to the WCF service calls? For the basicHttpBinding, the Keep-Alive behaviour is enabled by default, it can optionally be turned off via a custom binding, see here.

Back to Basics

At this point I was still convinced I should not be seeing those additional 401s, so I decided to build a very simple secured WCF service and generate a proxy to the standard OData service we use.

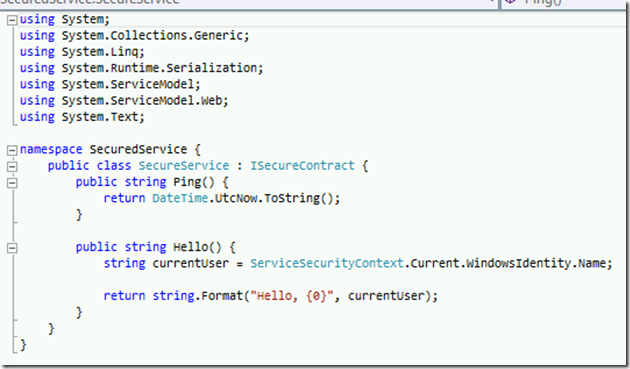

Here is a WCF Service that simply says Hello to the calling Windows user.


WCF Configuration as follows:


Visual Studio created a service reference for me an I simply called the service a number of times: both reusing the proxy as well as closing the proxy and recreating it:


The link layer trace was as follows:


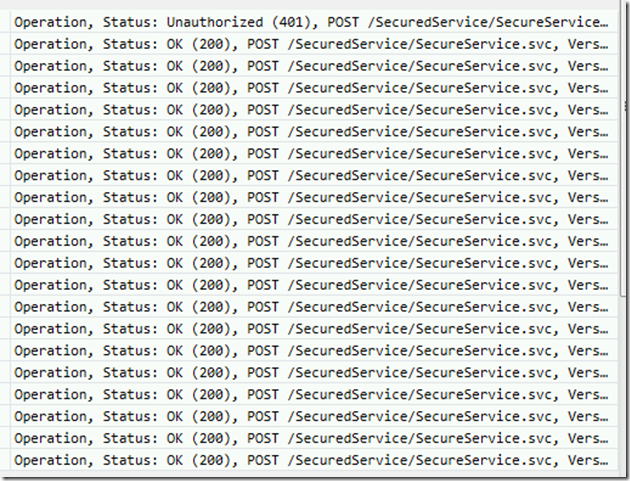

This was as expected, a single 401 but then 200s on subsequent calls. Kerberos was being used successfully and a transport level session was established! Just for completeness I could see the HTTP Keep-Alive header in the POST:




OK, on to the WCF Data Service. Again in Visual Studio I generated a service reference then:


This resulted in:

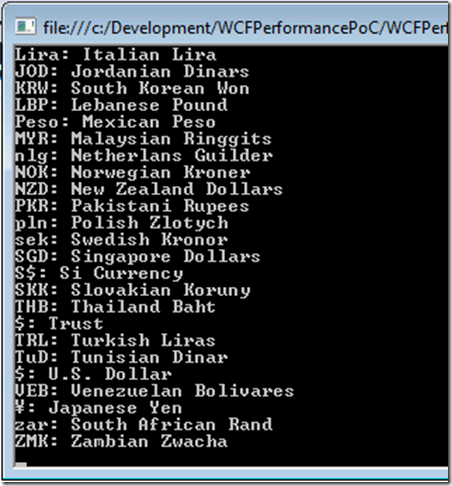

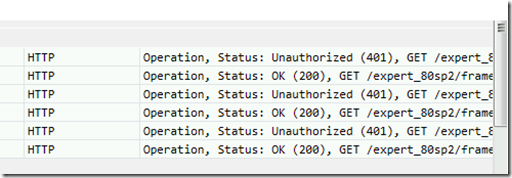

And the following trace:


At last here was the repeated 401/200 behaviour.

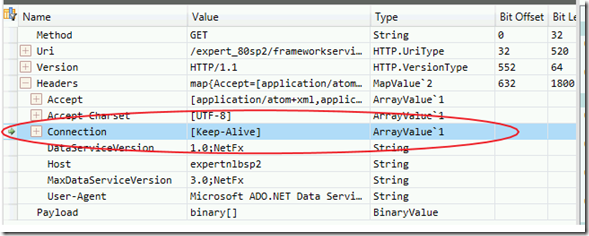

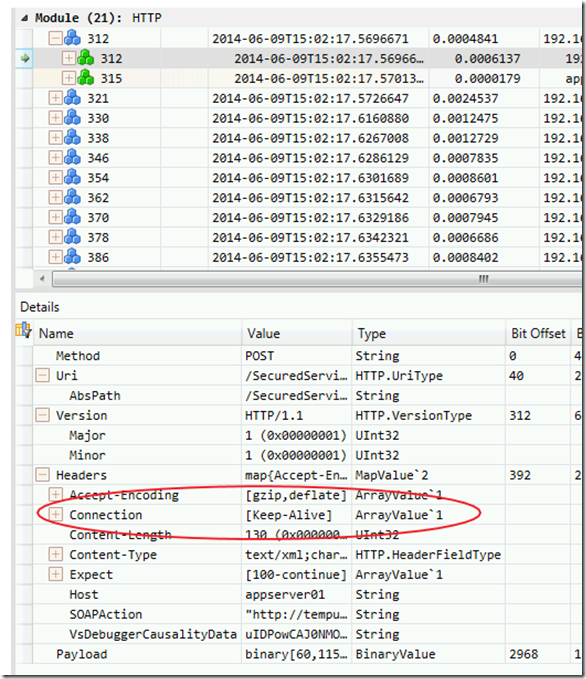

I checked for the Keep-Alive header in the request:

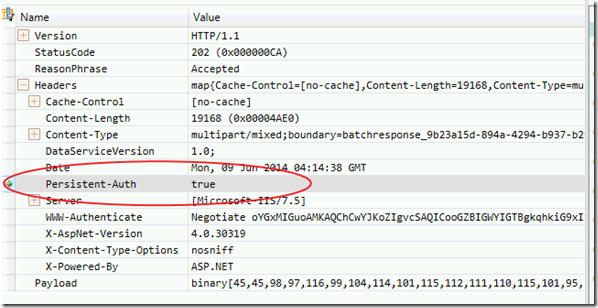

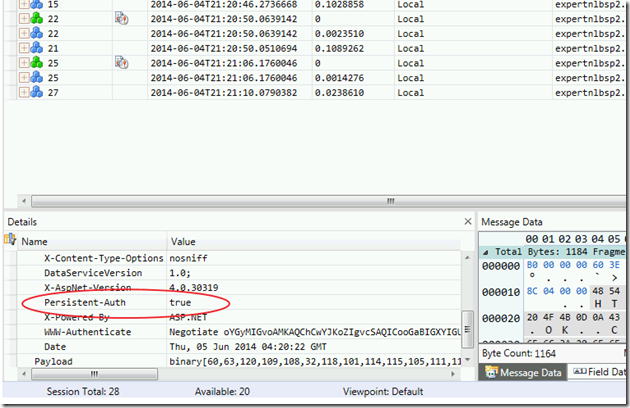

And looked for the Persistent-Auth header in the response:


Both present.

More head scratching.

More searching.

Then I posted this question to the Microsoft WCF Data Services forum.

While waiting for an answer, a colleague and I took at look at the System.Data.Services.Client.DataServiceContext base class for the generated context object. Working through that code, I came across the HttpWebRequest class which had a PreAuthenticate property which looked exactly what I wanted. A little more digging and then I found I could do this:

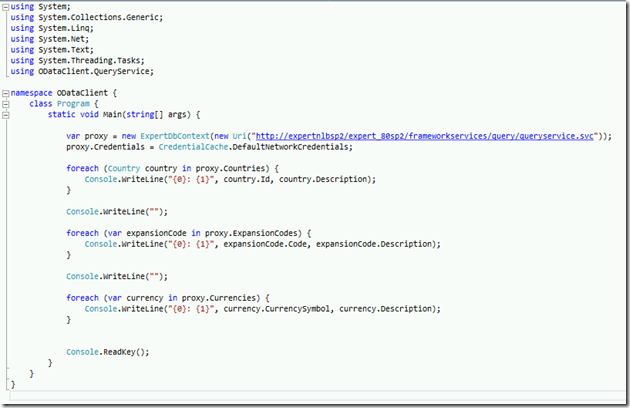

var context = new ExpertDbContext(…

context.Credentials = CredentialCache.DefaultNetworkCredentials;

context.SendingRequest2 += context_SendingRequest2;



static void context_SendingRequest2(object sender, SendingRequest2EventArgs e) {

((HttpWebRequestMessage)e.RequestMessage).HttpWebRequest.PreAuthenticate = true;

}



This was it!

Testing the code with this small change and the 401s were gone from the WCF Data Service traffic. Just as I was grabbing a celebratory cup of coffee, a colleague asked if I had seen the response to my question on the forum? I had not; it validated the above approach – Thank you Fred Bao.



Wrapping Up

This took about a week elapsed to work through, we’ve now updated our query service (OData) proxy to set the PreAuthenticate flag and can see improved system performance, particularly over constrained WAN connections. That Fiddler hid this really threw me, heisenbugs are really hard to dealt to.



Windows 8 and AppFabric Installation Pain

I’m getting a sense of déjà vu, I’ve just built a new Windows 8 virtual machine and spent a couple of hours fighting with the Windows Server AppFabric 1.1 install. I’m pretty sure this is at least the second time I’ve been on this merry dance so I’ll document it this time.

So let’s start of with a quick summary of the problem and solution: when attempting to install Windows Server AppFabric 1.1 (service hosting) on Windows 8 the installer fails with a MSI 1603 error. Searching the web for this error suggests the following:

1. Check the PSModulePath environment variable to ensure it is not corrupted, e.g. has a stray “ character in it. http://social.msdn.microsoft.com/Forums/vstudio/en-US/561f3ad4-14ef-4d26-b79a-bef8e1376d64/msi-error-1603-installing-appfabric-11-win7-x64

2. Add C:\Windows\System32\WindowsPowerShell\v1.0 to the PSModulePath

These two approaches didn’t resolve my install issues so I dug through the installer logs, more on that shortly. Cutting to the chase I needed to perform the following steps:

1. Check the local machine security groups and remove the AS_Administrators or AS_Observers groups if they had been left behind from a previous failed AppFabric installation attempt.

2. Ensure that the Windows Process Activation Service as well as WCF activation options have been installed.





Diagnosis Walkthrough…

The path to enlightenment was not straight and started with the logging created by the installation process, found in C:\Users\Stef Sewell\AppData\Local\Temp.

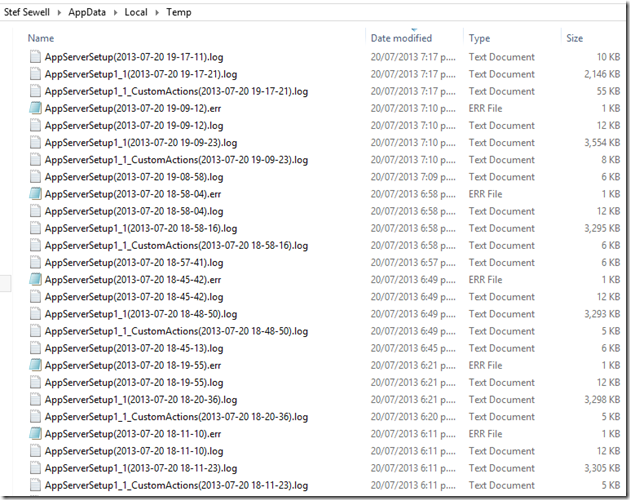

Three log files and an error log was produced for each failed install attempt. The most interesting files are the AppServerSetup1_1_CustomActions(…).log as they contained the various errors.

The earliest log file listed the following failure:

19/07/2013 9:19:06 p.m. EXEPATH=c:\Windows\system32\\icacls.exe PARAMS=c:\Windows\SysWOW64\\inetsrv\config /grant AS_Observers:(OI)(CI)(R) LOGFILE=C:\Users\Stef\AppData\Local\Temp\AppServerSetup1_1_CustomActions(2013-07-19 21-18-47).log
Error: c:\Windows\SysWOW64\\inetsrv\config: The system cannot find the file specified.
Output: Successfully processed 0 files; Failed processing 1 files
ExitCode=2

Seeing this error, I added in the missing folder config folder to C:\Windows\SysWOW64\inetsrv  but then I got the following error on the next attempt:

20/07/2013 6:49:09 p.m. EXEPATH=C:\Windows\system32\\net.exe PARAMS=localgroup AS_Observers /comment:”Members of this group can observe AppFabric.” /add LOGFILE=C:\Users\Stef\AppData\Local\Temp\AppServerSetup1_1_CustomActions(2013-07-20 18-48-50).log
Error: System error 1379 has occurred.
Error: The specified local group already exists.
ExitCode=2

Looking the in local groups on the machine, I could see the AS_Observers group was present and had not been removed by the previous failed install. I removed the group. Re-running the installer and I now get:

20/07/2013 7:09:38 p.m. EXEPATH=C:\Program Files\AppFabric 1.1 for Windows Server\ase40gc.exe PARAMS=/i administration LOGFILE=C:\Users\Stef\AppData\Local\Temp\AppServerSetup1_1_CustomActions(2013-07-20 19-09-23).log
Output: Microsoft (R) AppFabric 1.1 for Windows Server Setup Utility. Version 1.1.2106.32
Output: Copyright (C) Microsoft Corporation. All rights reserved.
Output: Workstation [Version 6.2.9200]
Output: OS Edition 0x30: Professional
Output: Load XML resource: (id=101, size=2868)
Output: Load XML resource: (id=101, size=2868)
Output: Load XML resource: (id=102, size=8696)
Output: Load XML resource: (id=102, size=8696)
Output: Load XML resource: (id=103, size=511)
Output: Load XML resource: (id=104, size=546)
Output: Load XML resource: (id=105, size=6759)
Output: Load XML resource: (id=103, size=511)
Output: [ServicingContext]
Output: INSTALLER_WINNING_COMPONENT_IDENTITY=
Output: INSTALLER_WINNING_COMPONENT_PAYLOAD=
Output: INSTALLER_WINNING_COMPONENT_MANIFEST=
Output: INSTALLER_WINNING_COMPONENT_VERSION=
Output: INSTALLER_SHADOWED_COMPONENT_IDENTITY=
Output: INSTALLER_SHADOWED_COMPONENT_PAYLOAD=
Output: INSTALLER_SHADOWED_COMPONENT_MANIFEST=
Output: INSTALLER_SHADOWED_COMPONENT_VERSION=
Output: Servicing type is None.
Output: [RunInstaller]
Output: Attempt 1 of 3: SuppressErrors=False
Output: [Initialize]
Output: Info: Initializing for update to administration.config…
Output: Installer ERROR: 0x80040154 Class not registered
Output: (Waiting 5 seconds)
Output: Attempt 2 of 3: SuppressErrors=False
Output: [Initialize]
Output: Info: Initializing for update to administration.config…
Output: Installer ERROR: 0x80040154 Class not registered
Output: (Waiting 10 seconds)
Output: Attempt 3 of 3: SuppressErrors=False
Output: [Initialize]
Output: Info: Initializing for update to administration.config…
Output: Installer ERROR: 0x80040154 Class not registered
Output: ERROR: _com_error: 0x80040154
Output: Exit code: 0x80040154 Class not registered

ExitCode=-2147221164

Three attempts to perform the step involving as40gc.exe failed so back to scouring the web, which turned up http://stackoverflow.com/questions/15415616/how-can-i-get-microsofts-appfabric-1-1-installed-on-windows-server-2012-os

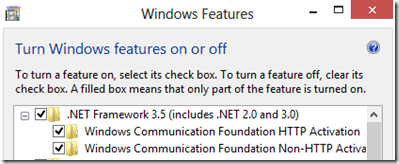

Now I was getting somewhere, I was missing certain Windows features, in particular the Windows Process Activation Service and the WCF HTTP and non-HTTP activation features. Unfortunately the PowerShell servermanager module is not available on Windows 8 so I installed them via the ‘Program and Features’ control panel.



With these features in place, the AppFabric installer was successful. It was at this point I vaguely remembered I’d been through this process 6 months ago when I last set-up a fresh Windows 8 VM, now it’s written up for next time.

Windows Identity Foundation, first steps…

I’ve been slowly working through the excellent book Programming Windows Identity Foundation by Vittorio Bertocci. I was getting a little restless though and wanted to see some code so I found this walkthrough and decided to play along. Things didn’t go as smoothly as I had hoped but I did learn more than I bargained for…

One of the first requirements to get the sample running is to ensure that you have SSL enabled on your default web site. This is not a common task for most developers so I’ll elaborate a little:

Setting up HTTPS

IIS Manager supports the creation of a self-signed certificate which is sufficient for development purposes. The server configuration provides a‘Server Certificates’ option as below, in the Actions menu there is a ‘Create Self-Signed Certificate…’ item.


There’s not much to the certificate creation process, enter a friendly name for the certificate. In my case I lacked imagination and went with ‘TestCertficateForWIF’. The certificate is created in the machine certificate store so running certmgr.msc doesn’t help as it opens the user store. Instead I ran the mmc.exe directly and added the certificate manager snap-in explicitly, when asked to choose a store I went with the local machine store.

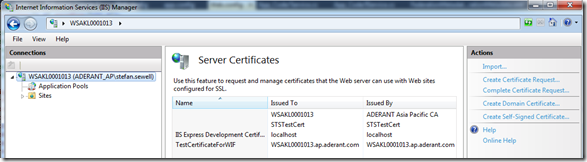

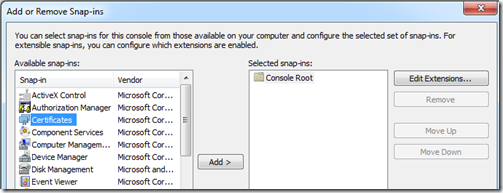

Looking in the Personal | Certificates node reveals the newly created certificate.

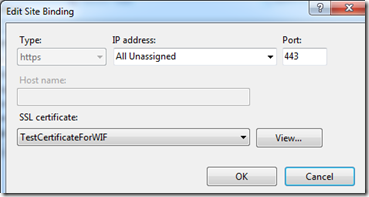

Setting up an HTTPS binding for the Default Web Site is now possible. Select the site in IIS manager and then choose to Edit Bindings… from the context menu.

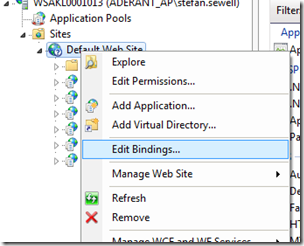

The dialog allows you to add a new HTTPS binding, you just select the certificate you want to use as part of the encryption process.


I next ran through the various steps in the walkthrough but when I tried the run the completed sample I got a KeySet error.

Additional Notes:

  • The certificate name for the DemoSTS web.config only requires CN=, not two.

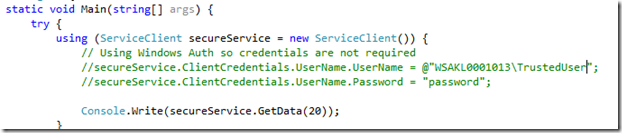

  • As we are using Windows authentication the console client does not need to pass credentials explicitly. When I set the credentials manually to a local test account I would see my domain account as the name in the returned claim.


Troubleshooting the Sample

A quick search suggested that the AppPool account my services were running as did not have access to the private key of the certificate. OK, back into the machine certificate store and ‘Manage Private Keys…’ for the certificate.


The web applications for the services were mapped to the ApplicationPoolIdentity (I’m running IIS7.5) so I tried adding the read right to the ‘IIS AppPool\DefaultAppPool’ account. This didn’t seem to help so I resorted to creating a specific service account and assigning it the read permission for the certificate.


I created a new application pool to run as this new ‘service.sts’ user and set the web applications use this application pool. This was good and resolved by KeySet error but I was now getting a fault back from my secure WCF service. After a little head scratching I fired up Fiddler to watch the traffic:

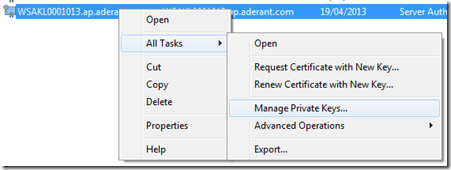

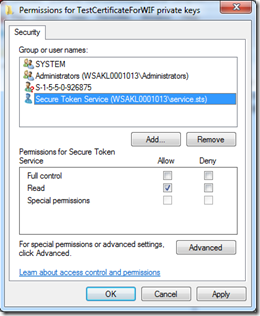

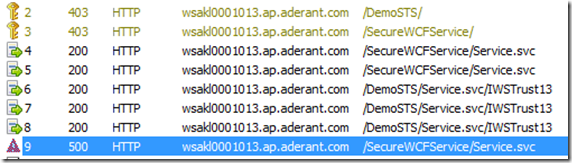

OK – I could see the secure WCF service calling the DemoSTS, the DemoSTS doing it’s work and then calling back to the secure service, then a 500 failure. Looking at the response message for the 500:

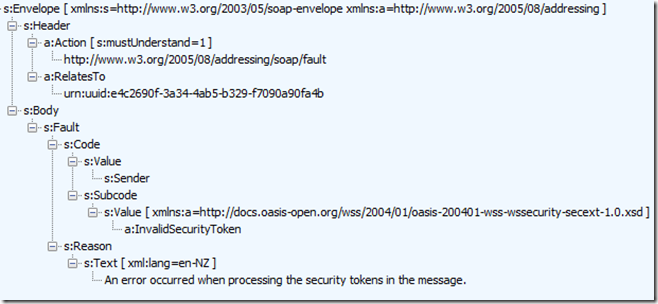

For some reason I was getting an ‘Invalid Security Token’ error. I knew the error was in the secure WCF service but not much more. While looking through the web.config for the service, I found commented out trace configuration:

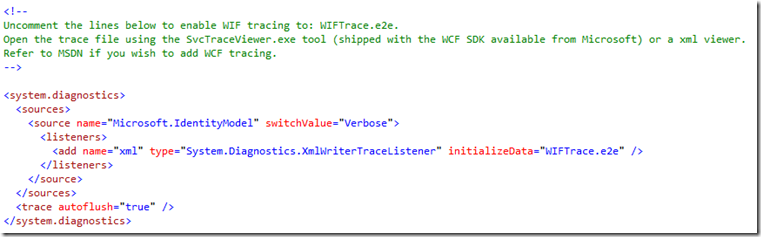

So I enabled the tracing and re-ran the client. The WIFTrace.e2e file popped into the service directory and I used the Microsoft Service Trace Viewer to look at the log:


Looking at the error detail:


‘The issuer of the security token was not recognized by the IssuerNameRegistry…’, that looked familiar so back to the web.config.

<microsoft.identityModel>

<service name=”SecureWCFService.Service”>

<audienceUris>

<add value=”http://wsakl0001013.ap.aderant.com/SecureWCFService/Service.svc&#8221; />

</audienceUris>

<issuerNameRegistry type=”Microsoft.IdentityModel.Tokens.ConfigurationBasedIssuerNameRegistry, Microsoft.IdentityModel, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35″>

<trustedIssuers>

<add thumbprint=”?????????????????????????????” name=”http://wsakl0001013.ap.aderant.com/DemoSTS/Service.svc&#8221; />

</trustedIssuers>

</issuerNameRegistry>

</service>

</microsoft.identityModel>

I’ve removed the actual thumbprint, but here was where the service was configured to accept tokens from a STS using a particular certificate identified by it’s thumbprint. I needed the thumbprint of the certificate I had created, easily done via PowerShell:

> $certificate = Get-ChildItem -Path Cert:\LocalMachine\My | where { $_.Subject -match ‘CN\=WSAKL0001013.ap.aderant.com’ }

>$certificate.thumbprint

The thumbprint provided by PowerShell did not match my web.config so I updated the config.

Happy days, the sample now ran:


Workflow Services & MSMQ Revisited

I’ recently dusted off a WCF sample I’d written and blogged about a year or two ago. During the process of getting it to work again, I discovered the blog posting is incorrect so I’m reposting with corrections and additional explanation.

Tom Hollander published a great set of posts on this topic which I needed…

http://blogs.msdn.com/b/tomholl/archive/2008/07/12/msmq-wcf-and-iis-getting-them-to-play-nice-part-1.aspx

http://blogs.msdn.com/b/tomholl/archive/2008/07/12/msmq-wcf-and-iis-getting-them-to-play-nice-part-2.aspx

http://blogs.msdn.com/b/tomholl/archive/2008/07/12/msmq-wcf-and-iis-getting-them-to-play-nice-part-3.aspx

We needed a quick proof of concept to show that a workflow service could be activated via a message sent over MSMQ. First part was workflow design and coding, this was the easy part. All I wanted to do was accept a custom type, in this case a TimeEntry, from a SubmitTime service operation that belonged to an ITimeEntryContract. On receiving the time entry I would simple log the fact that it arrived into the event log. This is pretty much the “Hello, World!” of the services demos. The second part was getting the configuration correct…

One of the promises of WCF is that it gives us a unified communication model regardless of the protocol: net.tcp, http, msmq, net.pipe and it does. The best description I’ve heard for WCF is that it is a channel factory, and you configure the channels declaratively in the .config file (you can of course use code too if you prefer). The key benefit is that the service contract and implementation, for the main part, can be channel agnostic. Of course there are the exceptions to prove the rule such as a void return being required by an MSMQ channel but for the most part it holds. As it turns out, it was true that I needed to make no changes to code to move from a default http endpoint to a MSMQ endpoint. I need need to do a lot of configuration and setup though which is not that well documented. This post hopes to correct that is some small way.

First up the easy part, writing the code.

In Visual Studio 2010 I started a new ‘WCF Workflow Service Application’ project. First I define my TimeEntry model class:

using System;

namespace QueuedWorkflowService.Service {
    public class TimeEntry {
        public Guid TimekeeperId { get; set; }
        public Guid MatterId { get; set; }
        public TimeSpan Duration { get; set; }

        public override string ToString() {
            return string.Format(“Timekeeper: {0}, Matter: {1}, Duration: {2}”, TimekeeperId, MatterId, Duration);
        }
    }
}

Then I defined a code activity to write to the time entry provided into the event log:

using System;
using System.Diagnostics;
using System.Activities;

namespace QueuedWorkflowService.Service {
    public sealed class DebugLog : CodeActivity {
        public InArgument<string> Text { get; set; }

        protected override void Execute(CodeActivityContext context) {
            string message = string.Format(“Server [{0}] – Queued Workflow Service – debug :{1}”, DateTime.Now, context.GetValue(this.Text));
            Debug.WriteLine(message);
            EventLog.WriteEntry(“Queued Service Example”, message, EventLogEntryType.Information);
        }
    }
}

All the C# code is now written and I create my workflow:

I need a variable to hold my time entry so I define one at the scope of the service:

The project template creates the CorrelationHandle for me but we won’t be using it.

The receive activity is configured as follows:

With the Content specified as:

This is such a simple service that I don’t need any correlation between messages, it just receives and processes the message without communicating back to the sender of the message. Therefore I also cleared out the CorrelatesOn and the CorrelationInitializer properties.

Finally I set up the Debug activity to write the time entry to the event log:

That’s it! I’m done. This now runs using the default binding introduced in WCF4 (http and net.tcp). Starting up the project launches my service and the WCF test client is also opened pointing to my new service. The service is running in Cassini, the local web server built into the Visual Studio debugging environment.

15 minutes, or there about, to build a workflow service. What follows a summary of the steps discovered over the next 4 hours try to convert this sample from using an http endpoint to an msmq endpoint.

Default Behaviour
One of the key messages Microsoft heard from the WCF 3 community was that configuration was too hard. To even get started using WCF you had to understand a mountain of new terms and concepts including: channels, address, binding, contract, behaviours,… the response to this in .NET 4 is defaults. If you don’t specify an endpoint, binding etc then WCF creates a default one for you based upon your machine configuration settings. This makes getting a service up and running a very straightforward experience. BUT as soon as you want to step outside of the defaults, you need the same knowledge that you needed in the WCF 3 world.

Here’s the web.config I ended up with after a couple of hours, the MSMQ settings were a voyage of personal discovery… (http://msdn.microsoft.com/en-us/library/ms731380.aspx)

<?xml version=”1.0″ encoding=”utf-8″?>
<configuration>
  <system.web>
    <compilation debug=”true” targetFramework=”4.0″ />
  </system.web>
  <system.serviceModel>
    <services>
      <service name=”TimeEntryService”>
        <endpoint
            binding=”netMsmqBinding”
            bindingConfiguration=”nonTxnMsmqBinding”
            address=”net.msmq://localhost/private/QueuedWorkflowService/TimeEntryService.xamlx”
            contract=”ITimeEntryContract” />

        <endpoint
            binding=”netMsmqBinding”
            bindingConfiguration=”txnMsmqBinding”
            address=”net.msmq://localhost/private/QueuedWorkflowServiceTxn/TimeEntryService.xamlx”
            contract=”ITimeEntryContract” />
        <endpoint
            address=”mex”
            binding=”mexHttpBinding”
            contract=”IMetadataExchange” />
      </service>
    </services>
    <behaviors>
      <serviceBehaviors>
        <behavior>
          <serviceMetadata httpGetEnabled=”true” />
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <bindings>
      <netMsmqBinding>
        <binding
            name=”nonTxnMsmqBinding”
            durable=”false”
            exactlyOnce=”false”
            useActiveDirectory=”false
            queueTransferProtocol=”Native”>
          <security mode=”None”>
            <message clientCredentialType=”None” />
            <transport
                msmqAuthenticationMode=”None
                msmqProtectionLevel=”None” />
          </security>
        </binding>

        <binding
            name=”txnMsmqBinding”
            durable=”true”
            exactlyOnce=”true”
            useActiveDirectory=”false”
            queueTransferProtocol=”Native”>
          <security mode=”None”>
            <message clientCredentialType=”None” />
            <transport
                msmqAuthenticationMode=”None”
                msmqProtectionLevel=”None” />
          </security>
        </binding>
      </netMsmqBinding>
    </bindings>
  </system.serviceModel>
    <microsoft.applicationServer>
        <hosting>
            <serviceAutoStart>
                <add relativeVirtualPath=”TimeEntryService.xamlx” />
            </serviceAutoStart>
        </hosting>
    </microsoft.applicationServer>
</configuration>

The two important sections are the endpoint and the netMsmqBinding sections. A single service is defined that exposes two MSMQ endpoints, a transactional endpoint and a non-transactional one. This was done to demonstrate the changes required in the netMsmqBinding to support a transactional queue over a non-transactional queue; namely the durable and exactlyOnce attributes. In both cases no security is enabled. I had to do this to get the simplest example to work. Note that the WCF address for the queue does not include a $ suffix on the private queue name and matches the Uri of the service.

We still have some way to go to get this to work, we need a number of services to be installed and running on the workstation:

Services
• Message Queuing (MSMQ)
• Net.Msmq Listener Adapter (NetMsmqActivator)
• Windows Process Activation Service (WAS)

I also ensured that AppFabric was running as this is the easiest way to start the debugging process:
• AppFabric Event Collection Service (AppFabricEventCollectionService)

If you don’t have these services registered on your workstation you will need to go into the ‘Programs and Features’ control panel, then ‘Turn Windows features on or off’ to enable them (Windows 7).

With the services installed and started you need to create a private message queue to map the endpoint to (see : http://msdn.microsoft.com/en-us/library/ms789025.aspx ). The queue name must match the Uri of the service.


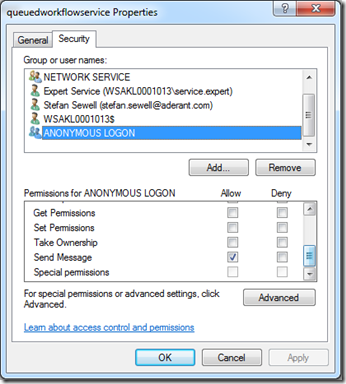

The sample is configured to run without security on the queues, i.e. the queues are not authorized. You must allow the anonymous login ‘send’ rights on the queues. If you don’t, the messages will be delivered but the WAS listener will not be able to pick up the messages from the queue.


If you have problems and do not see the message delivered to the correct queue, have a look in the system Dead Letter queues.


You also need to change your VS2010 project to use IIS as the host rather than Cassini. On the project properties dialog, open the Web tab:

As I wanted events from this service to be added to my AppFabric monitoring store, I also added a connection string to the mapped web application and then configured AppFAbric monitoring to use that connection.


And in AppFabric configuration:

Finally you also need to enable the correct protocols on the web application (Manage Application… | Advanced Settings):

I’ve added in net.msmq for queuing support and also net.pipe for the workflow control endpoint.

Make sure that the user the application pool is running as has access to read and write to the queue.

With all the server configured I then wrote a simple WPF test application that used a service reference generated by VS2010, this creates the appropriate client side WCF configuration. The button click handler called the service proxy directly:

private void submitTimeEntryButton_Click(object sender, RoutedEventArgs e) {
    using (TimeEntryContractClient proxy = new TimeEntryContractClient(“QueuedTimeEntryContract”)) {
        TimeEntry timeEntry = new TimeEntry {
                                            TimekeeperId = Guid.NewGuid(),
                                            MatterId = Guid.NewGuid(),
                                            Duration = new TimeSpan(0, 4, 0, 0)
                                            };

        string message = string.Format(“Client [{3}]- TimekeeperId: {0}, MatterId: {1}, Duration: {2}”,
            timeEntry.TimekeeperId,
            timeEntry.MatterId,
            timeEntry.Duration,
            DateTime.Now);

        proxy.SubmitTimeEntry(timeEntry);
        EventLog.WriteEntry(“Queued Service Example”, message, EventLogEntryType.Information);
    }
}

And the awesome UI:

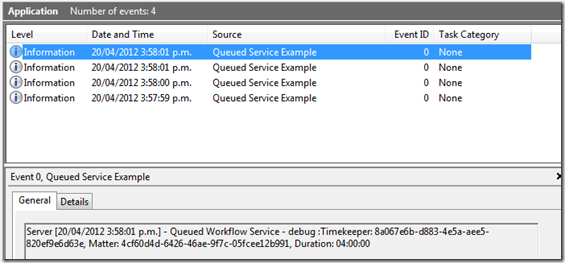

Click the button and you get entries in the event log, a client event and the server event:


I made no changes to the code to move from an http endpoint to a MSMQ endpoint, but it’s not as simple as tweaking the config and you’re good to go. I’d love to see some tooling in VS2010 or VS vNext to take some of the pain away from WCF config, similar to the tooling AppFabric adds into IIS. Until that happens, there are plenty of angle brackets to deal with.

WiXing Lyrical (Part 2)

Picking up from where we left off previously with the product.wxs file, next we come to the Media element.

<Media Id=”1″ Cabinet=”media1.cab” EmbedCab=”yes” />

This is the default media entry created by Votive. The files to be installed are constructed into a single cabinet file which is embedded within the MSI.

Specifying the Install Location

Following the media is the directory structure we want to install the application into. A set of directory elements are nested to describe the required structure.

<Directory Id=”TARGETDIR” Name=”SourceDir”>
  <Directory Id=”dirAderant” Name=”AderantExpert”>
    <Directory Id=”dirEnvironmentFolder” Name=”[EXPERTENVIRONMENTNAME]” >
      <Directory Id=”INSTALLLOCATION” Name=”ExpertAssistantInstaller”>
      <!–additional components go here –>

      </Directory>
      <Directory Id=”ProgramMenuFolder”>
        <Directory Id=”ApplicationProgramsFolder” Name=”Aderant”>
        </Directory>
      </Directory>
    </Directory>
  </Directory>
</Directory>

The TARGETDIR is the root directory for the installation and by default is set to the SourceDir. We then set-up the directory structure underneath \AderantExpert\Environment\ExpertAssistantInstaller. The environment folder is set to the value in the EXPERTENVIRONMENTNAME property. The INSTALLLOCATION Id specifies where the files will be installed to. If you want to install into the Program Files folder, see here.

In addition to specifying the target location for the install files, a folder is added to the Program Menu folder for the current user, the ApplicationProgramsFolder reference is used later in the script when setting up the start menu items.

Updating an XML File

It is possible to use components to action additional steps and tie the KeyPath to the containing directory structure. The KeyPath is used by the installer to determine if an item exists so if the containing directory structure exists the actions do not run. In my sample the red comment above is a place holder for a couple of components similar to.

<Component Id=”cmpConfigEnvironmentName” Guid=”????” KeyPath=”yes”>
<util:XmlFile Id=”xmlConfigEnvironmentName”
Action=”setValue”
ElementPath=”/configuration/appSettings/add[\[]@key=’EnvironmentName'[\]]/@value”
File=”[INSTALLLOCATION]\ExpertAssistantCO.exe.config”
Value=”[EXPERTENVIRONMENTNAME]”
/>
</Component>

The component is responsible for updating the ExpertAssistant.exe.config Xml file with a property from the MSI. The util extension library provides a XmlFile function which can read and write to a specified Xml file. The element path is a formatted field and therefore, square brackets in the XPath must be escaped. We have three updates to the exe.config to make and so end up with three components, for ease of management these are then wrapped in a ComponentGroup:

<ComponentGroup Id=”ExpertAssistantCO.ConfigSettings”>
  <ComponentRef Id=”cmpConfigEnvironmentName”/>
  <ComponentRef Id=”cmpConfigExpertSharePath”/>
  <ComponentRef Id=”cmpConfigLocalInstallationPath”/>
</ComponentGroup>

Adding a Start Menu Item

A common requirement is to add a shortcut for the installed application to the Start Menu. There is an odd twist here as we are using a perUser install. The StartMenu item is unique to each user installing the software and therefore a registry key is required to track the KeyPath. The registry key must be in the HKEY_CURRENT_USER hive and a logical location is Software\VendorName\ApplicationName\.

<DirectoryRef Id=”ApplicationProgramsFolder”>
  <Component Id=”ApplicationShortcut” Guid=”????” >
    <Shortcut Id=”ApplicationStartMenuShortcut”
       Name=”Expert Assistant”
       Description=”Expert Assistant”
       Target=”[INSTALLLOCATION]\ExpertAssistantCO.exe”
       />
    <RegistryValue Root=”HKCU” Key=”Software\Aderant\ExpertAssistant_[EXPERTENVIRONMENTNAME]” Name=”installed” Type=”integer” Value=”1″ KeyPath=”yes”/>
    <RemoveFolder Id=”ApplicationProgramsFolder” On=”uninstall”/>
  </Component>
</DirectoryRef>

Along with the Shortcut, we also tie a RemoveFolder action to the registry KeyPath so that the folder containing the shortcut is removed during an uninstall.

Remove Custom Registry Key On Uninstall

It is possible to have specific actions occur only during an uninstall to clean up, we have this need to remove a registry key that maybe set-up by the application. To achieve this we schedule a Registry action to ‘removeKeyOnUninstall’. Again, this action is perUser and therefore tied to a KeyPath in the HKEY_CURRENT_USER registry hive.

<DirectoryRef Id=”ApplicationProgramsFolder”>
  <Component Id=”RemoveRunRegistryEntry” Guid=”????”>
    <RegistryValue Root=”HKCU” Key=”Software\Microsoft\Windows\CurrentVersion\Run” Name=”ADERANT.ExpertAssistant” KeyPath=”yes” Type=”string” Value=””/>
    <Registry Action=”removeKeyOnUninstall” Root=”HKCU” Key=”Software\Microsoft\Windows\CurrentVersion\Run\ADERANT.ExpertAssistant” />
  </Component>
</DirectoryRef>

Launch an Exe after Installation

After the installation or repair of the MSI is complete, we’d like the MSI to run the executable that we’ve just installed on to the machine. To do this we need to invoke a custom action.

<CustomAction Id=”LaunchApplication” BinaryKey=”WixCA” DllEntry=”WixShellExec” Impersonate=”yes” />

The custom action executes the command held in the WixShellExecTarget property that we specified near the beginning of the wxs file. The custom action then needs to be scheduled to run after InstallFinalize:

<InstallExecuteSequence>
  <Custom Action=”LaunchApplication” After=”InstallFinalize” >NOT(REMOVE ~=”ALL”)</Custom>
</InstallExecuteSequence>

In our case we don’t want the action to execute if we are removing the software, only on install and repair. Therefore we specify the condition ‘NOT(REMOVE ~=”ALL”)’, more details can be found here.

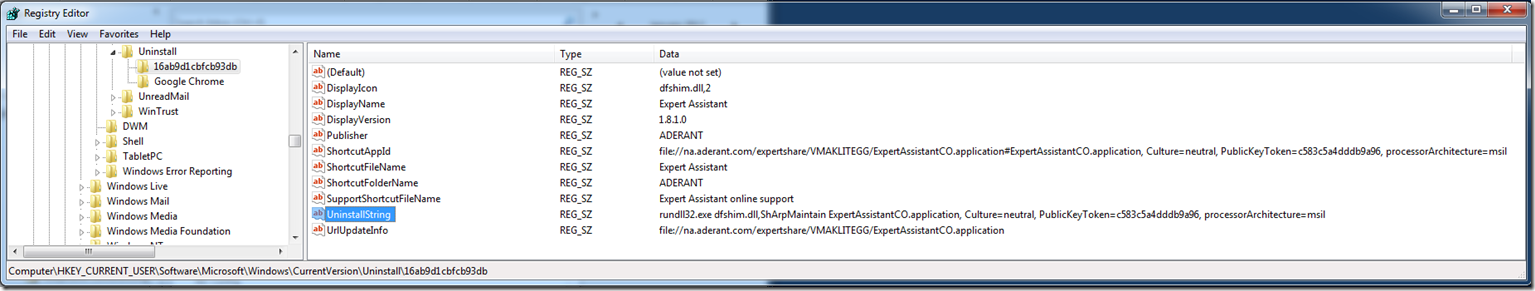

NOTE: Before setting this condition, the entry in the Add Remove Programs control panel would not automatically be deleted on uninstall, it would only disappear after a manual refresh. If the uninstall process returns a code other than 0, an error has occurred and so the refresh is not triggered. To see this was the case, I enabled verbose logging via msiexec and removed the MSI using the command line. The log showed that the custom action was failing because the path didn’t exist – because we had just removed it. The non-zero return code was logged.

Pulling It All Together

The final part of the script declares a feature – an installable unit. In our case we have a single feature which installs everything.

    <Feature Id=”ExpertAssistant”
             Title=”Expert Assistant”
             Level=”1″>
      <ComponentGroupRef Id=”ExpertAssistantCO.Binaries” />
      <ComponentGroupRef Id=”ExpertAssistantCO.Content” />
      <ComponentGroupRef Id=”ExpertAssistantCO.ConfigSettings” />
      <ComponentRef Id=”ApplicationShortcut” />
      <ComponentRef Id=”RemoveRunRegistryEntry” />
    </Feature>
  </Product>
</Wix>

Here the various component groups we’ve declared come into play, rather than listing out every feature individually we can reference the logical component group.

And we are done. We don’t require a UI for our installer and so I’ve not looked into that in any depth. WiX does fully support defining an installation wizard UI and even supports custom UI.

The last piece of the WiX tooling is the Deployment Foundation Toolkit which I’ll save for the next post.

Full product.wxs script for reference (with the GUIDs taken out) to close…

<?xml version=”1.0″ encoding=”UTF-8″?>
<Wix xmlns=”
http://schemas.microsoft.com/wix/2006/wi” xmlns:util=”http://schemas.microsoft.com/wix/UtilExtension” RequiredVersion=”3.5.0.0″>
  <Product Id=”?”
           Name=”ExpertAssistant”
           Language=”1033″
           Codepage=”1252″
           Version=”8.0.0.0″
           Manufacturer=”Aderant”
           UpgradeCode=”?”>
    <Package InstallerVersion=”200″
             Compressed=”yes”
             Manufacturer=”Aderant”
             Description=”Expert Assistant Installer”
             InstallScope=”perUser”
    />

    <Property Id=”EXPERTSHAREPATH” Value=”\\MyShare\ExpertShare” />
    <Property Id=”EXPERTENVIRONMENTNAME” Value=”MyEnvironment” />
    <Property Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\Environment\Applications” />
    <Property Id=”ARPPRODUCTICON” Value=”icon.ico” />
    <Property Id=”ARPNOMODIFY” Value=”1″ />
    <Property Id=”WixShellExecTarget” Value=”[#filExpertAssistantCOexe]”/>

    <SetProperty Id=”dirEnvironmentFolder” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]” After=”CostInitialize”/>
    <SetProperty Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]\Applications” After=”CostInitialize” />

    <Property Id=”EnableUserControl” Value=”1″ />

    <Icon Id=”icon.ico” SourceFile=”$(var.ExpertAssistantCO.TargetDir)\Expert_Assistant_Icon.ico”/>

    <Media Id=”1″ Cabinet=”media1.cab” EmbedCab=”yes” />

    <Directory Id=”TARGETDIR” Name=”SourceDir”>
      <Directory Id=”dirAderant” Name=”AderantExpert”>
        <Directory Id=”dirEnvironmentFolder” Name=”[EXPERTENVIRONMENTNAME]” >
          <Directory Id=”INSTALLLOCATION” Name=”ExpertAssistantInstaller”>
            <Component Id=”cmpConfigEnvironmentName” Guid=”?” KeyPath=”yes”>
              <util:XmlFile Id=”xmlConfigEnvironmentName”
                            Action=”setValue”
                            ElementPath=”/configuration/appSettings/add[\[]@key=’EnvironmentName'[\]]/@value”
                            File=”[INSTALLLOCATION]\ExpertAssistantCO.exe.config”
                            Value=”[EXPERTENVIRONMENTNAME]”
                            />
            </Component>
            <Component Id=”cmpConfigExpertSharePath” Guid=”?” KeyPath=”yes”>
              <util:XmlFile Id=”xmlConfigExpertSharePath”
                            Action=”setValue”
                            ElementPath=”/configuration/appSettings/add[\[]@key=’ExpertSharePath'[\]]/@value”
                            File=”[INSTALLLOCATION]\ExpertAssistantCO.exe.config”
                            Value=”[EXPERTSHAREPATH]”
                            />
            </Component>
            <Component Id=”cmpConfigLocalInstallationPath” Guid=”?” KeyPath=”yes”>
              <util:XmlFile Id=”xmlConfigLocalInstallationPath”
                            Action=”setValue”
                            ElementPath=”/configuration/appSettings/add[\[]@key=’LocalInstallationPath'[\]]/@value”
                            File=”[INSTALLLOCATION]\ExpertAssistantCO.exe.config”
                            Value=”[EXPERTLOCALINSTALLPATH]”
                            />
            </Component>
          </Directory>
          <Directory Id=”ProgramMenuFolder”>
            <Directory Id=”ApplicationProgramsFolder” Name=”Aderant”>
            </Directory>
          </Directory>
        </Directory>
      </Directory>
    </Directory>

    <ComponentGroup Id=”ExpertAssistantCO.ConfigSettings”>
      <ComponentRef Id=”cmpConfigEnvironmentName”/>
      <ComponentRef Id=”cmpConfigExpertSharePath”/>
      <ComponentRef Id=”cmpConfigLocalInstallationPath”/>
    </ComponentGroup>

    <DirectoryRef Id=”ApplicationProgramsFolder”>
      <Component Id=”ApplicationShortcut” Guid=”?” >
        <Shortcut Id=”ApplicationStartMenuShortcut”
           Name=”Expert Assistant”
           Description=”Expert Assistant”
           Target=”[INSTALLLOCATION]\ExpertAssistantCO.exe”
           />
        <RegistryValue Root=”HKCU” Key=”Software\Aderant\ExpertAssistant_[EXPERTENVIRONMENTNAME]” Name=”installed” Type=”integer” Value=”1″ KeyPath=”yes”/>
        <RemoveFolder Id=”ApplicationProgramsFolder” On=”uninstall”/>
      </Component>
    </DirectoryRef>

    <DirectoryRef Id=”ApplicationProgramsFolder”>
      <Component Id=”RemoveRunRegistryEntry” Guid=”?”>
        <RegistryValue Root=”HKCU” Key=”Software\Microsoft\Windows\CurrentVersion\Run” Name=”ADERANT.ExpertAssistant” KeyPath=”yes” Type=”string” Value=””/>
        <Registry Action=”removeKeyOnUninstall” Root=”HKCU” Key=”Software\Microsoft\Windows\CurrentVersion\Run\ADERANT.ExpertAssistant” />
      </Component>
    </DirectoryRef>

    <CustomAction Id=”LaunchApplication” BinaryKey=”WixCA” DllEntry=”WixShellExec” Impersonate=”yes” />
    <InstallExecuteSequence>
      <Custom Action=”LaunchApplication” After=”InstallFinalize” >NOT(REMOVE ~=”ALL”)</Custom>
    </InstallExecuteSequence>

    <Feature Id=”ExpertAssistant”
             Title=”Expert Assistant”
             Level=”1″>
      <ComponentGroupRef Id=”ExpertAssistantCO.Binaries” />
      <ComponentGroupRef Id=”ExpertAssistantCO.Content” />
      <ComponentGroupRef Id=”ExpertAssistantCO.ConfigSettings” />
      <ComponentRef Id=”ApplicationShortcut” />
      <ComponentRef Id=”RemoveRunRegistryEntry” />
    </Feature>
  </Product>
</Wix>

WiXing Lyrical (part 1)

Continuing on from the previous post, it’s time to take a look at the customization requirements that brought about the creation of a custom bootstrap process for our desktop installations.

The customization capabilities within the Expert product are extensive, they support changes to the  domain model, business process and user interface. Many of these changes result in the need to deploy custom assemblies to the workstations running the Expert applications. If the out-of-the-box ClickOnce manifests were used to manage these changes, they would need to be updated by the customization process. Instead of doing this, we chose a solution similar to Google Chrome and created our own bootstrap mechanism to manage updating the client software. The ClickOnce infrastructure is used to ‘install an installer’. I’m not going to drill into the bootstrapper, Pete has already discussed some of the performance aspects here. Instead we’ll walk through the process of creating an MSI to replace the ClickOnce based installation.

This was not my first MSI authoring, in the past I’d been exposed to InstallShield, Wise and WiX, but I hadn’t done anything in the area for around 4-5 years. The last installer I wrote was using Windows Installer Xml (WiX) when it had just been publicly released from Microsoft and the memory was not a pleasant one. The good news is that in the intervening years, my biggest issue with WiX has been resolved – there is now good documentation and a healthy community supporting it. Rather than waiting until the end to list a couple of resources, here are the main references I used:

The first thing to note is that WiX is a free, open source toolkit that is fully supported by Microsoft. It does not ship with any Visual Studio version and must be downloaded. The current version, and the version I used, is v3.5 though there is a v3.6 RC0 available. The actual download of the bits is available from CodePlex here, the SourceForge site links to this.

There are three components in the installer:

  1. WiX – command line tools, Xml schemas, extensions
  2. Votive – a Visual Studio plug-in
  3. Deployment Tools Foundation (DTF) – a managed library for programming against MSIs.

In addition to the WiX Toolkit, another tool to have is Orca which is available in the Windows SDK. Orca is an editor for the MSI database format, allowing an MSI to be easily inspected and edited.

The WiX toolset is summarized concisely by the following diagram (taken from http://wix.sourceforge.net/coretoolset.html)

clip_image001

While it is possible to work directly from the command line, the Visual Studio integration is a compelling option. While the Extension Manager Online gallery contains a WiX download:


This did not work for me. Instead I downloaded and installed the MSI from the CodePlex site.

Votive, the Visual Studio plug-in, encourages making the installer part of your solution. It adds a number of project types to the product:


You can add the set-up project alongside the project containing the source code and maintain the whole solution together – installation should not be a last minute scramble.


Getting started is straightforward, you just add a reference in your set-up project to the project containing the application that you want to install. In our case, we want to install the bootstrapper contained in the ExpertAssistantCO project:


The set-up project is configured out of the box to generate a couple of WXS files for you based on the VS project file. The command line tool HEAT can create a WXS file from a number of different sources including a directory, VS project or an existing MSI. To enable HEAT, set the Harvest property to true and this will re-create the WXS files on each build based upon the project file. By simply adding a project reference to the set-up project you will have a MSI on the next solution compile. The intermediary files can be found by choosing to show all files in the Solution Explorer:


The obj/Debug subfolder will contain the generated wxs file and the wixobj files compiled from them. The bin\Debug subfolder is the default location for the MSI. The two files of interest are the ExpertAssisantCO.wxs, which contains the files from the referenced ExpertAssistantCO project and the Product.wxs which contains configuration information for the installation process. Building the project will invoke the WiX tooling: candle, preprocesser that transforms .wix into .wixobj, and light, processes wixobj files to create an MSI.

Of course, the out-of-the-box experience can only go so far and so the generated WXS likely needs to be augmented. Our approach was to use HEAT (via the Harvest option) to generate the initial WXS files and then the generation was disabled. The ExpertAssistantCO.wxs file was moved into the project for manual editing and the product.wxs file contains the bulk of the custom code.

The ExpertAssistantCO.wxs contains the list of files involved in the project, this includes source files, built files and documentation. Each file is wrapped in a separate Fragment and given a unique component Id:

<Fragment>
<DirectoryRef Id=”INSTALLLOCATION”>
<Component Id=”cmpExpertAssistantCOexe”
Guid=”????????-????-????-????-????????????” KeyPath=”yes”>
<File Id=”filExpertAssistantCOexe” Source=”$(var.ExpertAssistantCO.TargetDir)\ExpertAssistantCO.exe” />
</Component>
</DirectoryRef>
</Fragment>

The generated code has been changed to specify an explicit GUID and to set the KeyPath attribute. The actual GUID has been replaced with ?s, the KeyPath attribute is used to determine if the component already exists – more here. The shouting INSTALLLOCATION is an example of a public property, in the MSI world public properties are declared in full uppercase. The directory the file will be installed into is declared in the product.wxs file and referenced here. The $(var.ExpertAssistantCO.TargetDir) demonstrates a pre-processor directive that allows VS solution properties to be accessed, in this case to determine the source location of the file.

Components can be grouped together to provide more manageable units, for example:

<Fragment>
<ComponentGroup Id=”ExpertAssistantCO.Binaries”>
<ComponentRef Id=”cmpExpertAssistantCOexe” />
<ComponentRef Id=”cmpICSharpCodeZipLib” />
<ComponentRef Id=”cmpAderantDeploymentClient”/>
</ComponentGroup>
</Fragment>

The generated referencedProject.wxs file contains each file declared within a component and then logical groupings for the components. The more interesting aspects of WiX belong to the product.wix file. This is where registry keys, short cuts, remove actions and other items are set-up.

On to the product.wix then and the first line:

<Wix xmlns=”http://schemas.microsoft.com/wix/2006/wi”
xmlns:util=”
http://schemas.microsoft.com/wix/UtilExtension”
RequiredVersion=”3.5.0.0″>

Here we are referencing two namespaces, the default namespace is the standard WiX schema and the second util namespace enables the use of a WiX extension library. Extension libraries contain additional functionality usually grouped by a common thread. The library needs to be added as a project reference:


Available extension libraries can be found in C:\Program Files (x86)\Windows Installer XML v3.5\bin :


A drill-down into the various extension schemas is provided here. The utility extension referenced above allows Xml file manipulation which we will see later. The requiredVersion sets the version of WiX we are depending on to compile the file.

Next we define the product:

<Product Id=”????????-????-????-????-????????????”
Name=”ExpertAssistant”
Language=”1033″
Codepage=”1252″
Version=”8.0.0.0″
Manufacturer=”Aderant”
UpgradeCode=”????????-????-????-????-????????????”>

The GUIDs are used to uniquely identify the product installer and so you want to ensure you create a valid GUID using tooling such as GuidGen.exe. Following the product, we define the package:

<Package InstallerVersion=”200″
Compressed=”yes”
Manufacturer=”Aderant”
Description=”Expert Assistant Installer”
InstallScope=”perUser”
/>

The attribute worth calling out here is the InstallScope. This can be set to perMachine or perUser, setting to perMachine requires elevated privileges to install. We want to offer an install to all users without requiring elevated privilege and so have a per user install. This has implications later on when we have to set-up user specific items such as Start Menu shortcuts.

Next we move onto properties:

<!– Properties –>
<Property Id=”EXPERTSHAREPATH” Value=”\\MyShare\ExpertShare” />
<Property Id=”EXPERTENVIRONMENTNAME” Value=”MyEnvironment” />
<Property Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\” />

<Property Id=”ARPPRODUCTICON” Value=”icon.ico” />
<Property Id=”ARPNOMODIFY” Value=”1″ />
<Property Id=”WixShellExecTarget” Value=”[#filExpertAssistantCOexe]”/>

The first three properties are custom public properties defined for this installer, public properties must be declared all upper case. A public property can be provided on the msiexec command line or via an MST file to customize the property value.

The properties with a prefix of ARP relate to the Add Remove Programs control panel, now Programs and Features in Windows 7. The ARPPRODUCTICON is used to set the icon that appears in the installed programs list. The ARPNOMODIFY property removes the Change option from the control panel options:


In contrast, Visual Studio SP1 supports the Change option:


Other ARP properties can be found here.

The final property WixShellExecTarget specifies the file to be executed when the install completes. This is a required parameter of a custom action that we will come to later. The [#filExpertAssistantCOexe] is a reference to a file declared in the ExpertAssistantCO.wxs file.

<File Id=”filExpertAssistantCOexe” Source=”$(var.ExpertAssistantCO.TargetDir)\ExpertAssistantCO.exe” />

Next up we come to one of the areas that stumped me for a while, how to set a property value. Some attributes can directly reference a property by surrounding the property name in [] and have the value swapped in, e.g.

<Directory Id=”dirEnvironmentFolder” Name=”[EXPERTENVIRONMENTNAME]” >

However this is not supported when setting properties, therefore the following does not result in substitution:

<Property Id=”Composite” Value=”[PROPERTY1] and [PROPERTY2]” />

Instead the SetProperty element is used:

<!– Set-up environment specific properties–>
<SetProperty Id=”dirEnvironmentFolder” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]” After=”CostInitialize”/>
<SetProperty Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]\Applications” After=”CostInitialize” />

When setting the property, the appropriate time to perform the action needs to be set using either the Before or After attribute. This injects the action into the appropriate place in the list of actions to perform. To determine the order, I used Orca to view the InstallExecuteSequence:


A final property that is set is the EnableUserControl, which allows the installer to pass all public properties to the server side during a managed install.

<Property Id=”EnableUserControl” Value=”1″ />

Note: the preferred approach is to set the Secure attribute individually to Yes on each property declaration that supports user control (I have only just learnt this while writing up the posting).

A final element for this post is Icon which specifies an icon file.

<Icon Id=”icon.ico” SourceFile=”$(var.ExpertAssistantCO.TargetDir)\Expert_Assistant_Icon.ico”/>

The icon Id was used by the ARPPRODUCTICON to set the icon seen in the install programs control panel.

There’s more to come, however this post has become long enough in its own right. In the next post I’ll drill into setting registry keys, determining the install location, Start Menu settings and more.

So far we’ve walked through the following WiX code:

<?xml version=”1.0″ encoding=”UTF-8″?>
<Wix xmlns=”
http://schemas.microsoft.com/wix/2006/wi” xmlns:util=”http://schemas.microsoft.com/wix/UtilExtension” RequiredVersion=”3.5.0.0″>
<Product Id=”????????-????-????-????-????????????”
Name=”ExpertAssistant”
Language=”1033″
Codepage=”1252″
Version=”8.0.0.0″
Manufacturer=”Aderant”
UpgradeCode=”????????-????-????-????-????????????”>
<Package InstallerVersion=”200″
Compressed=”yes”
Manufacturer=”Aderant”
Description=”Expert Assistant Installer”
InstallScope=”perUser”
/>

    <!– Public Properties –>
<Property Id=”EXPERTSHAREPATH” Value=”\\MyShare\ExpertShare” />
<Property Id=”EXPERTENVIRONMENTNAME” Value=”MyEnvironment” />
<Property Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\Environment\Applications” />
<Property Id=”ARPPRODUCTICON” Value=”icon.ico” />
<Property Id=”ARPNOMODIFY” Value=”1″ />
<Property Id=”WixShellExecTarget” Value=”[#filExpertAssistantCOexe]”/>

    <!– Set-up environment specific properties–>
<SetProperty Id=”dirEnvironmentFolder” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]” After=”CostInitialize”/>
<SetProperty Id=”EXPERTLOCALINSTALLPATH” Value=”C:\AderantExpert\[EXPERTENVIRONMENTNAME]\Applications” After=”CostInitialize” />

<!– All users to access the properties, not just elevated users–>
<Property Id=”EnableUserControl” Value=”1″ />

    <!– Icons –>
<Icon Id=”icon.ico” SourceFile=”$(var.ExpertAssistantCO.TargetDir)\Expert_Assistant_Icon.ico”/>

Deploying Desktop Applications

Over the last couple of weeks I’ve been re-examining the desktop deployment strategy we have for Aderant applications. This installer navel gazing has resulted in augmenting our existing ClickOnce based approach with an MSI. The next couple of blog posts will drill into my ClickOnce headaches and my embracing of WiX to create MSIs.

Desktop Deployment Challenges

During the first steps into the new millennium, rich/smart/fat client applications which install binary files onto the local host fell out of fashion in the face of the centralized web deployment model. Deploying desktop applications was a delicate process: prior to the world of managed code, COM applications roamed the world and brought with them the plague of ‘DLL Hell’. Installing a new piece of software into a Windows environment could very well result in previously stable applications breaking, registries full of COM ClassIDs could become corrupt and the use of regedit and regsvr32 became almost accepted mainstream tools. The Microsoft .NET framework worked very hard overcome the fragility of the COM world but introduces its own complexities: managing versions, the global assembly cache, shadow copies and so on. Regardless of the technology, the software must be rolled out to each individual desktop and managed on each desktop. Installer technology supported the concept of repair but did not support automatic upgrades; additionally the installer often required administrator privileges to install.

A Mexican stand-off ensued: desktop applications allowed richer user experiences, a simpler programming model and the ability to run independently of a network connection; web applications have a much simpler deployment model and updates.

Of course, it is quite natural to want the best of both worlds and so various approaches have evolved to try to satisfy this, one of these approaches is ClickOnce.

Microsoft ClickOnce

As part of the .NET v2 framework, Microsoft introduced a new deployment option for desktop applications called ClickOnce. The goals of ClickOnce are to solve the following three major issues:

  1. Difficulty updating a deployed application
  2. Impact of the application on the users’ desktop
  3. Administrator privileges required to install apps

Conceptually, ClickOnce provides a central deployment model for desktop applications which does not require the installing user to have elevated privileges. It supports both the automatic repair and upgrading of applications and supports the use of an HTTP channel to distribute the installer. This last point is a game changer – desktop applications could now be installed and updated over HTTP on port 80, not requiring any additional firewall exceptions. This allows ClickOnce to be used to deploy applications over the internet as well as a corporate network. A couple of high profile, non-Microsoft examples of ClickOnce adoption demonstrates an industry acceptance: Google Chrome and Join.Me.

Corporate vs. Internet Installation

The ability to distribute software over the internet is something of a double edged sword should you choose to use ClickOnce to distribute software within a corporate network. The internet is untrustworthy, therefore mechanisms are required within ClickOnce to establish trust. These mechanisms are on by default and some cannot be switched off. To discuss some of these first requires an understanding of how an application is deployed via ClickOnce.

A ClickOnce deployment is basically managed by two XML files called manifests. There is an application manifest (.manifest) and a publisher manifest (.application). There’s the first annoyance – the application manifest does not have the .application file extension, which is so confusing. The application manifest contains a description of the files to be deployed and other settings that are controlled by the author of the application. The publisher manifest points to the application manifest, and contains information that is pertinent to the firm installing the application such as the publisher Url, update policy and the minimum required version. Each manifest is by default tamper proof, the manifests include a hash so that they cannot be altered without the use of appropriate tools such as the Manifest Generation and Editing Tool(mage.exe) – note: changing the application manifest invalidates the publisher manifest. It is possible to remove the hash from individual files within the manifest. The tamper proofing is only part of the trust story, you also need to be able to trust that the install comes from a trusted application vendor and that is was installed from a trusted publisher. Identity on the internet is established using certificates and so both of the manifests can be signed using a Code Signing certificate as evidence.

Time for the second annoyance… to install a ClickOnce application silently requires that both the manifests are signed using a certificate that is trusted as a software publisher by the machine undertaking the installation. This is a serious pain for ISVs. In our case, we can signed the application manifest with our company certificate and indeed should do so. However, if one of the manifests is signed then the other must also be signed, therefore the publisher manifest must be signed. The publisher of the application is the firm installing our software and so they must have a code signing certificate and ensure that the certificate is trusted by each desktop machine. If you choose to sign neither manifest, the installing user will see a security dialog window asking them if they trust the publisher and location – most corporate users will not know what they are being asked.

An additional step in the trust process is ensuring that the publisher URL belongs to the Trusted Site  (or Local Intranet Site) security zone of IE.

All of this protection makes sense for internet deployments but less so for intranet deployments within a corporate network which is implicitly trusted.

While the silent install is possible, if somewhat complex, a silent remove is not supported, the user will always be prompted to confirm the removal of the application. This single anomaly causes a great deal of frustration within the firms we provide software too. It is possible to achieve an automated uninstall but it requires the use of some nasty automation code:

On Error Resume Next
Set objShell = WScript.CreateObject(“WScript.Shell”)
objShell.Run “taskkill /f /im [your app process name]*”
objShell.Run “[your app uninstall key]”
Do Until Success = True
Success = objShell.AppActivate(“[your window title]”)
Wscript.Sleep 200
Loop
objShell.SendKeys “OK”

This VBScript snippet was taken from:http://social.msdn.microsoft.com/Forums/en-US/winformssetup/thread/51a44139-2477-4ebb-8567-9189063cf340/. The app uninstall key will be found in the registry:


Why am I so down on this? ClickOnce is a pull installation, it is expected that a user will choose to install the software. This is not so often the case within a corporate environment with a locked down desktop – applications are pushed to users using management software such as System Center Configuration Manager or via Active Directory group policies.

Additional Headaches

Beyond the heartache to perform a silent install and remove of the application, there are some other pain points of note.

ClickOnce and Citrix don’t mix well. ClickOnce permits installs by a non-privileged user, to do so the application is installed into the users local profile, this means on a Citrix environment each user has a separate install of the software taking up disk space.

The path of the application is a monster too, for example the Join.Me installer placed the files into:

C:\Users\username\AppData\Local\Apps\2.0\1A6OWNZM.ETC\EEWH8699.6PL\join..tion_43a0dbe7f0f75062_0001.0000_9871fcdc8aa605d7

If you have either long filenames or a deep file hierarchy, you can run out of characters for your file paths (260 character limit).

ClickOnce does not provide any extensibility points to run custom pre or post deployment actions.

In our particular case, we need to deploy assemblies to the application after the initial installation due to on-site firm customizations. ClickOnce does have a self-updating capability but we needed something more dynamic – more on this later…

In Defence of ClickOnce

This has been a rather negative look at ClickOnce so far so I do feel the need to provide some positive balance. ClickOnce is great at deploying apps over HTTP, it provides a self-repair and self-updating installer, it allows non-admin users to install software safely, it goes to great lengths to ensure the software you install can be trusted.

The case for ClickOnce was strong enough that we’ve used it for the Aderant Golden Gate desktop applications. The negatives are from unusual customization scenarios and field experience within corporate networks which has lead to the investigation into a MSI centric approach.

If you are pursuing a ClickOnce installer and need to dig a little deeper than the VS2010 template, I  strongly recommend getting Brian Noyes book: http://www.amazon.com/Smart-Client-Deployment-ClickOnce-Applications/dp/0321197690.

In the next post, I’ll discuss our customization requirements that lead to using ClickOnce to install a bootstrapper.

Creating a generic ping proxy

In the previous post we walked through the steps required to implement a service monitoring ‘Ping’ operation as a WCF endpoint behavior. This allows us to add the ping functionality to an endpoint using WCF configuration alone. Following on from this, here’s a generic implementation of a Http proxy class to call Ping on any service.

Last time we left off having created a proxy to a test service using the WcfTestClient application.

Ping operation from metadata in the WCF Test Client

Switching to the XML view lets us see the SOAP request and reply message for a ping.

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
  <s:Header>
    <Action s:mustUnderstand="1" xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://aderant.com/expert/contract/TestServiceContract/IService1/Ping</Action>
  </s:Header>
  <s:Body>
    <Ping xmlns="http://aderant.com/expert/contract/TestServiceContract" />
  </s:Body>
</s:Envelope>

and the response:

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
  <s:Header />
  <s:Body>
    <PingResponse xmlns="http://aderant.com/expert/contract/TestServiceContract">
      <PingResult>2011-10-18T01:28:57.0222683Z</PingResult>
    </PingResponse>
  </s:Body>
</s:Envelope>

The namespace highlighted in green is the namespace we gave to our service as part of its ServiceContract attribution:

[ServiceContract(Namespace="http://aderant.com/expert/contract/TestServiceContract")]
public interface IService1 {

The SOAP message varies from service to service according to the namespace of the contract and the type of the contract. If we know these two values then we can construct the appropriate SOAP message for a generic client.

private static void CallWcfServiceUsingGenericProxy() {
    const string address = @"http://localhost/TestService/Service1.svc";
    const string serviceContractType = "IService1";
    const string serviceContractNamespace = @"http://aderant.com/expert/contract/TestServiceContract";
    Console.WriteLine("Pinging WCF service using the generic proxy...");
    DateTime utcStart = DateTime.UtcNow;
    string response = PingService(serviceContractType, serviceContractNamespace, address);
    DateTime utcFinished = DateTime.UtcNow;
    DateTime serverPingTimeUtc = ProcessPingResponse(response, serviceContractNamespace);
    WriteTimingMessage(utcStart, serverPingTimeUtc, utcFinished);
}

The calling of the generic proxy is separated from the processing of the response so that a timing can be made around just the communication.

private static string PingService(string serviceContractType, string contractNamespace, string address) {
    string pingSoapMessage = string.Format(@"", contractNamespace);
    if (!contractNamespace.EndsWith("/")) { contractNamespace = contractNamespace + "/";}
    WebClient pingClient = new WebClient();
    pingClient.Headers.Add("Content-Type", "text/xml; charset=utf-8");
    pingClient.Headers.Add("SOAPAction", string.Format(@"""{0}{1}/Ping""", contractNamespace, serviceContractType));
    string response = pingClient.UploadString(address, pingSoapMessage);
    return response;
}

To Ping the service, we construct the SOAP message and use a WebClient to make the call. The web client requires headers to be added for the content type and the SOAPAction which tells the WCF Dispatcher which method we want to call.

To process the SOAP message returned from the Ping message we use:

private static DateTime ProcessPingResponse(string response, string contractNamespace) {
    XDocument responseXml = XDocument.Parse(response);
    XElement pingTime = responseXml.Descendants(XName.Get("PingResult", contractNamespace)).Single();
    DateTime serverPingTimeUtc = DateTime.Parse(pingTime.Value).ToUniversalTime();
    return serverPingTimeUtc;
}

Now we have the UTC DateTime from the server when it processed the response.

All good, if we know the contract namespace and interface type for the service we can ping it. As we saw, this information is attributed on the service contract class. To simplify the proxy code a little, we can use reflection to determine this information given just the contract type.

public class WcfServicePinger<TServiceContract> where TServiceContract : class {
    public DateTime Ping(string addressUri) {
        string @namespace = string.Empty;
        ServiceContractAttribute attribute = typeof(TServiceContract)
            .GetCustomAttributes(typeof(ServiceContractAttribute), true)
            .FirstOrDefault() as ServiceContractAttribute;
        if(attribute == null) {
            throw new ArgumentException("The specified type {0} is not a WCF service contract.", typeof(TServiceContract).Name);
        }
        if(string.IsNullOrWhiteSpace(attribute.Namespace)) {
            @namespace = "http://tempuri.org";
        } else {
            @namespace = attribute.Namespace;
        }
        return new WcfServicePinger().Ping(addressUri, typeof(TServiceContract).Name, @namespace);
    }
}

The non-generic WcfServicePinger calls our previous code, as above:

public class WcfServicePinger {
    public DateTime Ping(string addressUri, string serviceContractTypename, string serviceContractNamespace) {
        string response = PingService(serviceContractTypename, serviceContractNamespace, addressUri);
        DateTime serverPingTimeUtc = ProcessPingResponse(response, serviceContractNamespace);
        return serverPingTimeUtc;
    }

So in the end we would use:

DateTime serverTime = new WcfServicePinger<IService1>().Ping(“http://localhost/TestService/Service1.svc”);

Note that we have constructed a generic proxy that calls an Http endpoint. I did try to construct a net.tcp generic proxy class too but it broke my time box. The Ping method can be called via net.tcp using a proxy generated from the endpoint metadata.

Checking WCF Service Availability using an Endpoint Behavior

A common operational requirement for an SOA is the ability to determine if a service is available. Just as it is common to ping a machine, we also want to be able to ping an individual service to determine that it is running and able to respond to messages.

Our first pass at solving this issue was to introduce an IPingable interface that each of our service facades would implement. The code was pushed into our service base class and the software factory updated as appropriate. However, this didn’t feel quite right. Other service extensions such as the metadata endpoint were not so invasive, it can be established by a simple addition to the service configuration file. We felt we wanted the same configurable nature for a ping mechanism and so set out to figure out how to create a custom WCF behavior.

This post walks through the creation of a WCF Endpoint Behavior which will add a Ping() method to a service. The method returns the DateTime, in UTC, stating when the server processed the request. This can be used to establish how long a basic roundtrip to the service is taking for both the request and the reply. The use of an endpoint behavior allows us to add this functionality to any service, therefore we can add it retrospectively to services that we have already created without needing to change them.

The source code for this post is available from my DropBox.

Let’s start by looking at how we would configure such an endpoint behavior. For an existing service, we would copy the assembly containing the endpoint behavior into the bin folder for the service and then add some entries into the web.config:

<configuration>
    <system.serviceModel>
        <extensions>
            <behaviorExtensions>
                <add name="Ping" type="CustomWcfBehaviors.PingEndpointBehavior, CustomWcfBehaviors" />
            </behaviorExtensions>
        </extensions>
        <behaviors>
            <endpointBehaviors>
                <behavior>
                    <Ping>
                </behavior>
            </endpointBehaviors>
        </behaviors>

We register the type [CustomWcfBehaviors.PingEndpointBehavior in assembly CustomWcfBehaviors] that is our custom behavior as a behavior extension and then declare that we want to use the extension. The configuration above sets up a default behavior that will be applied to all endpoints since we haven’t explicitly named it. That’s it, fetch the metadata for the service it will now contain a Ping() method.

The configuration of the behavior is reasonably straight forward, let’s look at the implementation…

namespace CustomWcfBehaviors {
    public class PingEndpointBehavior: BehaviorExtensionElement, IEndpointBehavior {
    private const string PingOperationName = "Ping";
    private const string PingResponse = "PingResponse";

The behavior needs to derive from BehaviorExtensionElement which allows it to be declared in the service configuration as an extension element. We need to introduce two overrides:

// factory method to construct an instance of the behavior
protected override object CreateBehavior(){
    return new PingEndpointBehavior();
}
// property used to determine the type of the behavior
public override Type BehaviorType{
    get { return typeof(PingEndpointBehavior); }
}

Now onto the real work, the IEndpointBehavior implementation:

public void Validate(ServiceEndpoint endpoint) {}
public void AddBindingParameters(ServiceEndpoint endpoint, BindingParameterCollection bindingParameters) {}
public void ApplyClientBehavior(ServiceEndpoint endpoint, ClientRuntime clientRuntime) {}

public void ApplyDispatchBehavior(ServiceEndpoint endpoint, EndpointDispatcher endpointDispatcher) {
    if(PingOperationNotDeclaredInContract(endpoint.Contract)) {
        AddPingToContractDescription(endpoint.Contract);
    }
    UpdateContractFilter(endpointDispatcher, endpoint.Contract);
    AddPingToDispatcher(endpointDispatcher, endpoint.Contract);
}

There are four methods that we need to implement but only one that we do any work in. The ApplyDispatchBehavior is where we add our code to manipulate how the endpoint invokes the service operations.

Endpoints map to the ABC of WCF [address, binding and contract]. What we want to do is extend the contract with a new service operation. A service host may allow multiple endpoints to expose the service contract on different protocols. For example, we may choose to host our service using both http and net.tcp. If we use IIS as our service host, this is configured via the Advanced Settings… of the Manage Application… context menu option.

The ‘Enabled Protocols’ lists the protocols we want to use. If we have more than one protocol listed then we have to take care that we don’t attempt to add the new Ping operation multiple times to our contract – once per binding type. To check that we haven’t already added the operation we call a small Linq query…

private bool PingOperationNotDeclaredInContract(ContractDescription contract) {
    return ! contract
        .Operations
        .Where(operationDescription =>
            OperationDescription.Name.Equals(PingOperationName,
                StringComparison.InvariantCultureIgnoreCase))
        .Any();
}

If the Ping operation is not found then we need to add it:

private void AddPingToContractDescription(ContractDescription contractDescription) {
    OperationDescription pingOperationDescription = new
    OperationDescription(PingOperationName, contractDescription);
    MessageDescription inputMessageDescription = new MessageDescription(
        GetAction(contractDescription, PingOperationName), MessageDirection.Input);
    MessageDescription outputMessageDescription = new MessageDescription(
        GetAction(contractDescription, PingResponse), MessageDirection.Output);
    MessagePartDescription returnValue = new MessagePartDescription("PingResult",
        contractDescription.Namespace);
    returnValue.Type = typeof(DateTime);
    outputMessageDescription.Body.ReturnValue = returnValue;
    inputMessageDescription.Body.WrapperName = PingOperationName;
    inputMessageDescription.Body.WrapperNamespace = contractDescription.Namespace;
    outputMessageDescription.Body.WrapperName = PingResponse;
    outputMessageDescription.Body.WrapperNamespace = contractDescription.Namespace;
    pingOperationDescription.Messages.Add(inputMessageDescription);
    pingOperationDescription.Messages.Add(outputMessageDescription);
    pingOperationDescription.Behaviors.Add(new DataContractSerializerOperationBehavior(pingOperationDescription));
    pingOperationDescription.Behaviors.Add(new PingOperationBehavior());
    contractDescription.Operations.Add(pingOperationDescription);
}

Here we are creating an OperationDescription to add to our ContractDescription, this adds the operation specification for our Ping operation to the existing contract. The code to execute is encapsulated by the PingOperationBehavior().

public class PingOperationBehavior : IOperationBehavior {
    public void ApplyDispatchBehavior(OperationDescription operationDescription, DispatchOperation dispatchOperation) {
        dispatchOperation.Invoker = new PingInvoker();
    }
    public void Validate(OperationDescription operationDescription) {}
    public void AddBindingParameters(OperationDescription operationDescription, BindingParameterCollection bindingParameters) {}
    public void ApplyClientBehavior(OperationDescription operationDescription, ClientOperation clientOperation) {}
 }

Similar to the endpoint behavior, we need to implement an interface in this case the IOperationBehavior. The method signatures are similar and we need to fill out the ApplyDispatchBehavior method to call an IOperationInvoker to execute our Ping implementation:

internal class PingInvoker : IOperationInvoker {
    public object[] AllocateInputs() {
        return new object[0];
    }
    public object Invoke(object instance, object[] inputs, out object[] outputs) {
        outputs = new object[0];
        return DateTime.UtcNow;
    }
    public IAsyncResult InvokeBegin(object instance, object[] inputs, AsyncCallback callback, object state) {
        throw new NotImplementedException();
    }
    public object InvokeEnd(object instance, out object[] outputs, IAsyncResult result) {
        throw new NotImplementedException();
    }
    public bool IsSynchronous {
        get { return true; }
    }
 }

The ping operation is so simple that there is no asynchronous implementation. All we do is return the current date time on the server in UTC.

So where are we? Well, we’ve added the Ping method to our existing service contract and mapped it to an IOperationBehavior which will dispatch an IOperationInvoker to call the code.

Next up, we have to update the endpoint dispatcher so that it knows what to do if it receives a Ping request message. The endpoint dispatcher maintains a list of actions that it knows how to action. We need to update this list so that it includes our new ping action. To do this we just refresh the action list from the contract description operations:

private void UpdateContractFilter(EndpointDispatcher endpointDispatcher, ContractDescription contractDescription) {
    string[] actions = (from operationDescription in contractDescription.Operations
                        select GetAction(contractDescription, operationDescription.Name)
                       ).ToArray();
    endpointDispatcher.ContractFilter = new ActionMessageFilter(actions);
}

Finally we need to add a new dispatch operation to the endpoint dispatcher so that it calls our PingOperation when the Ping action is received.

private void AddPingToDispatcher(EndpointDispatcher endpointDispatcher, ContractDescription contractDescription) {
    DispatchOperation pingDispatchOperation = new DispatchOperation(endpointDispatcher.DispatchRuntime,
        PingOperationName,
        GetAction(contractDescription, PingOperationName),
        GetAction(contractDescription, PingResponse));

    pingDispatchOperation.Invoker = new PingInvoker();
    endpointDispatcher.DispatchRuntime.Operations.Add(pingDispatchOperation);
}

private string GetAction(ContractDescription contractDescription, string name) {
    string @namespace = contractDescription.Namespace;
    if(!@namespace.EndsWith("/")) { @namespace = @namespace + "/"; }
    string action = string.Format("{0}{1}/{2}", @namespace, contractDescription.Name, name);
    return action;
}

Well, we are now done on the server side. We’ve created a couple of new classes:
• PingEndpointBehavior
• PingOperationBehavior
• PingInvoker

These three classes allow us to add a Ping method to a service by adding the Ping behavior via the service configuration file.

To test this, you can use the WcfTestClient application. The sample code demonstrates this by calling Ping on a standard WCF and WF service created by Visual Studio, see my DropBox.

In the next post I’ll discuss how we create a generic service proxy to call Ping.

UPDATE: the code works for the basicHttpBinding but not for wsHttpBinding.

UPDATE: Code now available from github.com/stefsewell/WCFPing

Securing WF & WCF Services using Windows Authentication

To finish off the DEV404 session Pete and I presented at TechEd NZ, I gave a brief run through of the steps required to get Windows Authentication working in a load balanced environment using kerberos. Given the number of camera phones that appeared for snaps I’m going to assume this is a common problem with a non-intuitive solution…

The product I work on is an on-premise enterprise solution that uses the Windows Identity to provide an authenticated credential against which to authorize user requests. We host our services in IIS/Windows Server AppFabric and take advantage of the Windows Authentication provided by IIS. This allows one of two protocols to be used: kerberos and NTLM, which have quite separate characteristics.

Why Use Kerberos?
There are two main reasons we want to use kerberos over NTLM:

1. Performance: NTLM uses a challenge response pattern for authentication which leads to a high network utilization. During performance testing we saw a high volume of NTLM challenges which ultimately throttled our ability to serve requests. Kerberos uses tickets which can be cached permitted a better performing protocol.

1. Double hops: NTLM does not flow credentials – the canonical example is a user requesting serviceA on server1 to access a secured resource on server2. Server1 cannot flow the users identity to server2.

Kerberos and Load Balancing
We want to run our services within a load balanced cluster to avoid single points of failure and to be able to grow resources to meet demand as required, without having to adopt bigger tin. The default configuration of IIS does not encourage this… the Application Pools run as a local machine account. This is a significant issue for Kerberos because of the manner in which the protocol encrypts the tickets passed between client, TGS and target server. The password of the account running the service is used to encrypt tickets so that only a process running under that account can decrypt the message. The default use of a machine specific account prevents a ticket granting access to serviceX on server A also being used to access serviceX on server B.

The following steps are required to fix this:

1. Use a common domain account for the applications pools.

We use a DOMAIN\service.expert account to run our services. This domain account is granted log on as a service and log on as a batch job rights on each of the application servers.

2. Register an SPN mapping the service class to the account.

We run our services on HTTP and so register the load balancer address with the domain account used to run the services:

>setspn -a HTTP/clusteraddress serviceAccount

We are using the WCF BasicHttpBinding which does not require the client to ensure the service is running as a particular user (to prevent man in the middle attacks). If you are using any other type of binding then the client needs to state who it expects the service to be running as.

3. Configure IIS to use the application pool account rather than a machine account

system.webServer/security/authentication/windowsAuthentication useAppPoolCredentials must be set to true.

4. Configure IIS to allow kerberos authentication tokens to be cached

system.webServer/security/authentication/windowsAuthentication authPersistNonNTLM must be set to true.

See also http://support.microsoft.com/kb/954873

5. Ensure the cluster address is considered to be in the Local Intranet zone


Kerberos tokens are not supported in the Internet zone, therefore the URL for your services must be considered to be trusted. The standard way to implement this is to roll out a group policy that adds your domain to the local intranet zone settings.

The slide deck for the talk is available from http://public.me.com/stefsewell/

DEV404 – Hardcore Workflow 4

Thanks to everyone who attended the DEV404 session at TechEd NZ. We wanted to cover off some new material that we haven’t seen else where and so Pete concentrated on the extensibility of the WorkflowServiceHost and the WorkflowServiceHostFactory. Before we got there I felt we needed a lead in and so I gave a brief overview of the workflow runtime, much of the material was covered in depth at PDC09 in the session Workflow 4 Inside Out.

The key point was the single threaded nature of the workflow scheduler. There is a single thread responsible for scheduling the execution of the activities in the activity tree, you really do not want to block this thread. This is the thread that runs the Execute method of synchronous activities, to show this in action I built the following workflow:

There’s a collection of strings populated with URLs of a few well known websites.

Then, there is a ParallelForEach that iterates over the collection and fetches the contents of the web page. The FetchUrl activity was written as follows:

using System.Activities;
using System.IO;
using System.Net;

namespace WorkflowRuntime.Activities {
    /// <summary>
    /// Fetch HTTP resource synchronously
    /// </summary>
    public sealed class FetchUrlSync: CodeActivity {
        public InArgument Address { get; set; }
        protected override string Execute(CodeActivityContext context) {
            string address = context.GetValue(Address);
            string content = string.Empty;
            WebRequest request = HttpWebRequest.Create(address);

            using(HttpWebResponse response = request.GetResponse() as HttpWebResponse) {
                if(response != null) {
                    using (Stream stream = response.GetResponseStream()) {
                        if (stream != null) {
                            StreamReader reader = new StreamReader(stream);
                            content = reader.ReadToEnd();
                        }
                    }
                }
            }
            return content;
        }
    }
}

The HttpWebRequest class is used to fetch the page contents. Running the workflow gives the following results:

The Urls are fetched one at a time, the same behavior that you would see if the activities were scheduled in a sequence rather than in a parallel. Why? This is the single threaded scheduler, it must wait for the Execute() method of the activity to complete before it can schedule the next activity.

What we want to see is:

So how can we achieve this? Well, we have to rewrite the FetchUrl activity to perform its work asynchronously. The HttpWebRequest already has async support via the BeginGetResponse and EndGetResponse method pairs; this is a standard pattern in .NET for async programming. The FetchUrl activity becomes:

using System;
using System.Activities;
using System.IO;
using System.Net;

namespace WorkflowRuntime.Activities {
    /// <summary>
    /// Fetch HTTP resource asynchronously
    /// <summary>
    public sealed class FetchUrlAsync: AsyncCodeActivity {
        public InArgument Address { get; set; }

        protected override IAsyncResult BeginExecute(AsyncCodeActivityContext context, AsyncCallback callback, object state) {
            string address = context.GetValue(Address);
            WebRequest request = HttpWebRequest.Create(address);
            context.UserState = request;
            return request.BeginGetResponse(callback, state);
        }

        protected override string EndExecute(AsyncCodeActivityContext context, IAsyncResult result) {
            string content = string.Empty; WebRequest request = (WebRequest) context.UserState;
            using (HttpWebResponse response = request.EndGetResponse(result) as HttpWebResponse) {
                if (response != null) {
                    using (Stream stream = response.GetResponseStream()) {
                        if (stream != null) {
                            StreamReader reader = new StreamReader(stream);
                            content = reader.ReadToEnd();
                        }
                    }
                }
            }
            return content;
        }
    }
}

We call the BeginGetResponse method passing in the callback and state object given to us by the workflow runtime as part of the AsyncCodeActivity.BeginExecute method. When the fetch is completed, by a separate worker thread, the workflow runtime is called back and the EndExecute method is invoked. In this method we take the resultant stream and read the contents into a string that we return. The workflow scheduler thread is no longer responsible for fetching the content, therefore it can schedule the fetch of the next Url and we get the parallel behavior we expect. All fetches are scheduled and then the workflow runtime waits to be called back by each worker thread when complete.

The time taken for the synchronous fetches to complete is the sum total of all fetches. For the asynchronous fetches, it is the time of the longest fetch plus a little overhead.

A basic rule of workflow is to perform I/O asynchronously and not to block the scheduler thread.

The sample code and PPT deck is available from https://public.me.com/stefsewell

Co-ordinating deployments using the Parallel class in .NET 4.0

It’s been a long time since the last entry, the new year brings with it a fresh post based on some of the deployment work I’ve been looking at recently. This work has opened my eyes to the support for parallel co-ordination of work within .NET 4…

Recently I’ve been looking at the deployment approach we have for our services with an eye to reducing the time it takes for a full deployment. There are two simple concepts that leapt out: the first is to use a pull rather than a push model; the second is to deploy to all of the servers in parallel. This second point becomes increasing important as more servers get involved in hosting the services.

Pull versus Push
One of the most basic operations performed by the deployment engine is the copying of files to the application servers that host the various services within our product. The file copying was originally implemented as a push: the deployment agent performs the copy to the target server using an administration share, e.g. \\appserver01.domain.com\d$\AderantExpert\Live\ . This requires the deployment engine to run with administrator privilege on the remote machines which is not ideal.

An alternative is to send a script to the target server containing the copy the commands, the target server is then responsible for pulling the file to its local storage from a network share (which can be secured appropriately). The deployment engine is responsible for creating the script from the deployment model and co-ordinating the execution of the scripts across the various application servers.

PowerShell remoting is a great option for the remote execution of scripts and it’s quite straight forward to transform an object model into a PowerShell script using LINQ. I created a small script library class that provides common functions, for example:

internal class PowerShellScriptLibrary {
    internal static void ImportModules(StringBuilder script) {
    script.AppendLine("import-module WebAdministration");
    script.AppendLine("import-module ApplicationServer");
}

internal static void StopWindowsServices(string filter, StringBuilder script) {
    script.AppendLine("# Stop Windows Services");
    script.AppendLine(string.Format("Stop-Service {0}", filter));
}

internal static void CreateTargetDirectories(string rootPath, IEnumerable fileSpecifications, StringBuilder script) {
    script.AppendLine("# Create the required folder structure");
    fileSpecifications
        .Where(spec => !string.IsNullOrWhiteSpace(spec.TargetFile.TargetRelativePath))
        .Select(x => x.TargetFile)
        .Distinct()
        .ToList()
        .ForEach(targetFile => {
            string path = Path.Combine(rootPath, targetFile.TargetRelativePath);
            script.AppendLine(string.Format("if(-not(Test-Path '{0}'))", path));
            script.AppendLine("{");
            script.AppendLine(string.Format("\tNew-Item '{0}' -ItemType directory", path));
            script.AppendLine("}");
        });
 }


The library is then used to create the required script by calling the various functions, the examples below are for the patching approach that allows updates to be installed without requiring a full remove and redeploy:

private string GenerateInstallScriptForPatch(Server server, IEnumerable filesToDeploy, Environment environment, string patchFolder) {
    StringBuilder powershellScript = new StringBuilder();

    PowerShellScriptLibrary.ImportModules(powershellScript);
    PowerShellScriptLibrary.StopWindowsServices("ADERANT*", powershellScript);
    PowerShellScriptLibrary.StopAppFabricServices(environment, powershellScript);
    PowerShellScriptLibrary.CreateTargetDirectories(server.ExpertPath, filesToDeploy, powershellScript);
    PowerShellScriptLibrary.CreatePatchRollback(server, patchFolder, filesToDeploy, powershellScript);
    PowerShellScriptLibrary.CopyFilesFromSourceToServer(environment, server, filesToDeploy, powershellScript);
    PowerShellScriptLibrary.UpdateFactoryBinFromExpertShare(server, environment.NetworkSharePath, powershellScript);
    PowerShellScriptLibrary.StartAppFabricServices(environment, powershellScript);
    PowerShellScriptLibrary.StartWindowsServices("ADERANT*", powershellScript);

    return powershellScript.ToString();
}

Though it is possible to treat NTFS as a transactional system (see http://msdn.microsoft.com/en-us/library/bb968806(v=VS.85).aspx ), and therefore have it participate in atomic actions, I didn’t walk this path. Instead I chose the compensation route and so when the model is transformed into a script I create both an install script and a compensate script which is executed in the event of anything going wrong.

private string GenerateRollbackScriptForPatch(Server server, IEnumerable filesToDeploy, Environment environment, string patchFolder) {
    StringBuilder powershellScript = new StringBuilder();

    PowerShellScriptLibrary.ImportModules(powershellScript);
    PowerShellScriptLibrary.StopWindowsServices("ADERANT*", powershellScript);
    PowerShellScriptLibrary.StopAppFabricServices(environment, powershellScript);
    PowerShellScriptLibrary.RollbackPatchedFiles(server, patchFolder, filesToDeploy, powershellScript);
    PowerShellScriptLibrary.StartAppFabricServices(environment, powershellScript);
    PowerShellScriptLibrary.StartWindowsServices("ADERANT*", powershellScript);

    return powershellScript.ToString();
}

The scripts simply take a copy of the existing files that will be replaced before replacing them with the new versions. If anything goes wrong during the patch install, the compensating script is executed to restore the previous files.

Given that a server specific script is now generated per application server, because different servers host different roles and therefore require different files, the deployment engine has the opportunity to pass the script to the server; ask it to execute it and then wait for the OK from each server. If one server has an error then all can have the compensation script executed as required.

Parallelizing a deployment
Before looking at ome co-ordination code for the deployment engine, I want to explicitly note that there are two different and often confused concepts:
• Asynchronous execution
• Parallel execution

An asynchronous execution involves a call to begin a method and then a callback from that method when the work is complete. IO operations are natural candidates for asynchronous calls to ensure that the calling thread is not blocked waiting on the IO to complete. Single threaded frameworks such as UI are the most common place to see a push for asynchronous programming. In .NET 3, the Windows Workflow Foundation provided an excellent asynchronous programming model where asynchronous activities are co-ordinated by a single scheduler thread. It is bad practice to have this scheduler thread block or perform long running operations as it stalls the workflow progress when in a parallel activity. It is better to schedule multiple asynchronous activities in parallel when possible and have these execute on separate worker threads.

Parallel execution involves breaking a problem into small parts that can be executed in parallel due to the multi-core nature of todays CPUs. Rather than having a single core work towards an answer, many cores can participate in the calculation. To reduce the elapsed time, the time experienced by the end user, of a calculation, it may be possible to execute a LINQ query over all available cores (typically 2, 4 or 8). Linq now has the .AsParallel() extension method which can be applied to queries to enable parallel execution of the query. Of course, profiling is required to determine if the query performs better in parallel for typical data sets.

.NET 4 added the Task Parallel Library into the core runtime. This library adds numerous classes to the BCL to make parallel programming and the writing of co-ordination logic much simpler. In particular the Parallel class can be used to easily schedule multiple threads of work. For example:

Parallel.Invoke(
    () => Parallel.ForEach(updateMap, server =>
        serverInstallationScripts.Add(server.Key, GenerateInstallScriptForPatch(server.Key, server.Value, environment, patchFolder))),
    () => Parallel.ForEach(updateMap, server =>
        serverRollbackScripts.Add(server.Key, GenerateRollbackScriptForPatch(server.Key, server.Value, environment, patchFolder)))
);

The above code is responsible for creating the install and compensate PowerShell scripts from the deployment model discussed above. There are two levels of parallelism going on here. First the generation of the install and compensate scripts are scheduled at the same time using a Parallel.Invoke() call. Then a Parallel.ForEach() is used to generate the required script for each application server defined in the environment in parallel. The runtime is responsible for figuring out how best to achieve this, as a programmer we simply declare what we want to happen. In the above code the updateMap is an IDictionary<server, IList>, this is a list of files to deploy to each server keyed on the server.

I was simply blown away by how simple and yet how powerful this programming model is.

Accessing the LSA from managed code

This blog entry would be filed under the ‘it should not be this hard’ category if I had one. A reasonably common requirement is to determine the rights a user has and then to add additional rights as necessary. After much searching I could not find a ‘managed’ way to do this so I ended up with the following…

This post very much stands on the shoulders of others and so here are the links to the original articles I used:

LSA .NET from Code Project
“RE: Unmarshalling LsaEnumerateAccountRights() list of privileges”

When installing a new service, it is often necessary to add additional rights to the user that the service runs as, for example ‘Log on a service’. To do so from either managed code or PowerShell would seem like a reasonably obvious ask but I could not find any type that allowed me to. The security information is managed by the Local Security Authority (LSA) which has an unmanaged API available from advapi32.dll, to access this from C# requires P/Invoke and a reasonable amount of code to marshall the types. I’m not a C++ programmer and so I first looked for an alternative.

The Windows Server 2003 Resource Kit includes a utility NTRights.exe which allows rights to be added and removed from a user via the command line. Unfortunately this tool no longer ships in the Windows Server 2008 Resource Kit but the 2003 version still works on both Windows 7 and Server 2008 (R2). The tool provided part of the solution but I also wanted to be able to find out the rights that have already been assigned to the user as well as add and remove.

No matter which way I turned, I was always led back to the advapi32 and writing a wrapper to allow the functions to be called from C#. Thankfully most of the hard work had already been done and documented by Corinna John, with a sample project posted on Code Project. The original article comes from 2003, so I was a little surprised that it still hasn’t made it into a managed library. The sample by Corinna showed show to add rights to a user but unfortunately did not include listing the rights. For that I have to thank Seng who lists sample code here.

By combining the efforts of both together and cleaning up the code a little I ended up with the wrapper class given at the end of the posting (there is plenty of room for improvement in my code). This was compiled in VS2010, the API ended up as:

public IList GetRights(string accountName)
public void SetRight(string accountName, string privilegeName)
public void SetRights(string accountName, IList rights)

I had to compile for .NET 2.0 so that I could call it from PowerShell…

[void][Reflection.Assembly]::LoadFile('C:\Samples\LSAController.dll') # void suppresses the output of the message text
$LsaController = New-Object -TypeName 'LSAController.LocalSecurityAuthorityController'
$LsaRights = New-Object -TypeName 'LSAController.LocalSecurityAuthorityRights' # a convenience class containing common rights
$LsaController.SetRight('ADERANT_AP\stefan.sewell', [LSAController.LocalSecurityAuthorityRights]::LogonAsBatchJob)
$LsaController.GetRights('ADERANT_AP\stefan.sewell')

The code for the wrapper follows, I hope this saves someone the 2 days I spend on this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Runtime.InteropServices;
//
// This code has been adapted from http://www.codeproject.com/KB/cs/lsadotnet.aspx
// The rights enumeration code came from http://www.tech-archive.net/Archive/DotNet/microsoft.public.dotnet.framework.interop/2004-11/0394.html
//
// Windows Security via .NET is covered on by Pluralsight:http://alt.pluralsight.com/wiki/default.aspx/Keith.GuideBook/HomePage.html
//

namespace LSAController {
    //
    // Provides methods the local security authority which controls user rights. Managed via secpol.msc normally.
    //
    public class LocalSecurityAuthorityController {
        private const int Access = (int)(
            LSA_AccessPolicy.POLICY_AUDIT_LOG_ADMIN |
            LSA_AccessPolicy.POLICY_CREATE_ACCOUNT |
            LSA_AccessPolicy.POLICY_CREATE_PRIVILEGE |
            LSA_AccessPolicy.POLICY_CREATE_SECRET |
            LSA_AccessPolicy.POLICY_GET_PRIVATE_INFORMATION |
            LSA_AccessPolicy.POLICY_LOOKUP_NAMES |
            LSA_AccessPolicy.POLICY_NOTIFICATION |
            LSA_AccessPolicy.POLICY_SERVER_ADMIN |
            LSA_AccessPolicy.POLICY_SET_AUDIT_REQUIREMENTS |
            LSA_AccessPolicy.POLICY_SET_DEFAULT_QUOTA_LIMITS |
            LSA_AccessPolicy.POLICY_TRUST_ADMIN |
            LSA_AccessPolicy.POLICY_VIEW_AUDIT_INFORMATION |
            LSA_AccessPolicy.POLICY_VIEW_LOCAL_INFORMATION
            );

        [DllImport("advapi32.dll", PreserveSig = true)]
        private static extern UInt32 LsaOpenPolicy(ref LSA_UNICODE_STRING SystemName, ref LSA_OBJECT_ATTRIBUTES ObjectAttributes, Int32 DesiredAccess, out IntPtr PolicyHandle);

        [DllImport("advapi32.dll", SetLastError = true, PreserveSig = true)]
        private static extern int LsaAddAccountRights(IntPtr PolicyHandle, IntPtr AccountSid, LSA_UNICODE_STRING[] UserRights, int CountOfRights);

        [DllImport("advapi32")]
        public static extern void FreeSid(IntPtr pSid);

        [DllImport("advapi32.dll", CharSet = CharSet.Auto, SetLastError = true, PreserveSig = true)]
        private static extern bool LookupAccountName(string lpSystemName, string lpAccountName, IntPtr psid, ref int cbsid, StringBuilder domainName, ref int cbdomainLength, ref int use);

        [DllImport("advapi32.dll")]
        private static extern bool IsValidSid(IntPtr pSid);

        [DllImport("advapi32.dll")]
        private static extern int LsaClose(IntPtr ObjectHandle);

        [DllImport("kernel32.dll")]
        private static extern int GetLastError();

        [DllImport("advapi32.dll")]
        private static extern int LsaNtStatusToWinError(int status);

        [DllImport("advapi32.dll", SetLastError = true, PreserveSig = true)]
        private static extern int LsaEnumerateAccountRights(IntPtr PolicyHandle, IntPtr AccountSid, out IntPtr UserRightsPtr, out int CountOfRights);

        [StructLayout(LayoutKind.Sequential)]
        private struct LSA_UNICODE_STRING {
            public UInt16 Length;
            public UInt16 MaximumLength;
            public IntPtr Buffer;
        }

        [StructLayout(LayoutKind.Sequential)]
        private struct LSA_OBJECT_ATTRIBUTES {
            public int Length;
            public IntPtr RootDirectory;
            public LSA_UNICODE_STRING ObjectName;
            public UInt32 Attributes;
            public IntPtr SecurityDescriptor;
            public IntPtr SecurityQualityOfService;
        }

        [Flags]
        private enum LSA_AccessPolicy : long {
            POLICY_VIEW_LOCAL_INFORMATION = 0x00000001L,
            POLICY_VIEW_AUDIT_INFORMATION = 0x00000002L,
            POLICY_GET_PRIVATE_INFORMATION = 0x00000004L,
            POLICY_TRUST_ADMIN = 0x00000008L,
            POLICY_CREATE_ACCOUNT = 0x00000010L,
            POLICY_CREATE_SECRET = 0x00000020L,
            POLICY_CREATE_PRIVILEGE = 0x00000040L,
            POLICY_SET_DEFAULT_QUOTA_LIMITS = 0x00000080L,
            POLICY_SET_AUDIT_REQUIREMENTS = 0x00000100L,
            POLICY_AUDIT_LOG_ADMIN = 0x00000200L,
            POLICY_SERVER_ADMIN = 0x00000400L,
            POLICY_LOOKUP_NAMES = 0x00000800L,
            POLICY_NOTIFICATION = 0x00001000L
        }

        // Returns the Local Security Authority rights granted to the account
        public IList<string> GetRights(string accountName) {
            IList<string> rights = new List<string>();
            string errorMessage = string.Empty;

            long winErrorCode = 0;
            IntPtr sid = IntPtr.Zero;
            int sidSize = 0;
            StringBuilder domainName = new StringBuilder();
            int nameSize = 0;
            int accountType = 0;

            LookupAccountName(string.Empty, accountName, sid, ref sidSize, domainName, ref nameSize, ref accountType);

            domainName = new StringBuilder(nameSize);
            sid = Marshal.AllocHGlobal(sidSize);

            if (!LookupAccountName(string.Empty, accountName, sid, ref sidSize, domainName, ref nameSize, ref accountType)) {
                winErrorCode = GetLastError();
                errorMessage = ("LookupAccountName failed: " + winErrorCode);
            } else {
                LSA_UNICODE_STRING systemName = new LSA_UNICODE_STRING();

                IntPtr policyHandle = IntPtr.Zero;
                IntPtr userRightsPtr = IntPtr.Zero;
                int countOfRights = 0;

                LSA_OBJECT_ATTRIBUTES objectAttributes = CreateLSAObject();

                uint policyStatus = LsaOpenPolicy(ref systemName, ref objectAttributes, Access, out policyHandle);
                winErrorCode = LsaNtStatusToWinError(Convert.ToInt32(policyStatus));

                if (winErrorCode != 0) {
                    errorMessage = string.Format("OpenPolicy failed: {0}.", winErrorCode);
                } else {
                    int result = LsaEnumerateAccountRights(policyHandle, sid, out userRightsPtr, out countOfRights);
                    winErrorCode = LsaNtStatusToWinError(result);
                    if (winErrorCode != 0) {
                        errorMessage = string.Format("LsaAddAccountRights failed: {0}", winErrorCode);
                    }

                    Int32 ptr = userRightsPtr.ToInt32();
                    LSA_UNICODE_STRING userRight;

                    for (int i = 0; i < countOfRights; i++) {
                        userRight = (LSA_UNICODE_STRING)Marshal.PtrToStructure(new IntPtr(ptr), typeof(LSA_UNICODE_STRING));
                        string userRightStr = Marshal.PtrToStringAuto(userRight.Buffer);
                        rights.Add(userRightStr);
                        ptr += Marshal.SizeOf(userRight);
                    }
                    LsaClose(policyHandle);
                }
                FreeSid(sid);
            }
            if (winErrorCode > 0) {
                throw new ApplicationException(string.Format("Error occured in LSA, error code {0}, detail: {1}", winErrorCode, errorMessage));
            }
            return rights;
        }

        // Adds a privilege to an account
        public void SetRight(string accountName, string privilegeName) {
            long winErrorCode = 0;
            string errorMessage = string.Empty;

            IntPtr sid = IntPtr.Zero;
            int sidSize = 0;
            StringBuilder domainName = new StringBuilder();
            int nameSize = 0;
            int accountType = 0;

            LookupAccountName(String.Empty, accountName, sid, ref sidSize, domainName, ref nameSize, ref accountType);

            domainName = new StringBuilder(nameSize);
            sid = Marshal.AllocHGlobal(sidSize);

            if (!LookupAccountName(string.Empty, accountName, sid, ref sidSize, domainName, ref nameSize, ref accountType)) {
                winErrorCode = GetLastError();
                errorMessage = string.Format("LookupAccountName failed: {0}", winErrorCode);
            } else {
                LSA_UNICODE_STRING systemName = new LSA_UNICODE_STRING();
                IntPtr policyHandle = IntPtr.Zero;
                LSA_OBJECT_ATTRIBUTES objectAttributes = CreateLSAObject();

                uint resultPolicy = LsaOpenPolicy(ref systemName, ref objectAttributes, Access, out policyHandle);
                winErrorCode = LsaNtStatusToWinError(Convert.ToInt32(resultPolicy));

                if (winErrorCode != 0) {
                    errorMessage = string.Format("OpenPolicy failed: {0} ", winErrorCode);
                } else {
                    LSA_UNICODE_STRING[] userRights = new LSA_UNICODE_STRING[1];
                    userRights[0] = new LSA_UNICODE_STRING();
                    userRights[0].Buffer = Marshal.StringToHGlobalUni(privilegeName);
                    userRights[0].Length = (UInt16)(privilegeName.Length * UnicodeEncoding.CharSize);
                    userRights[0].MaximumLength = (UInt16)((privilegeName.Length + 1) * UnicodeEncoding.CharSize);

                    int res = LsaAddAccountRights(policyHandle, sid, userRights, 1);
                    winErrorCode = LsaNtStatusToWinError(Convert.ToInt32(res));
                    if (winErrorCode != 0) {
                        errorMessage = string.Format("LsaAddAccountRights failed: {0}", winErrorCode);
                    }

                    LsaClose(policyHandle);
                }
                FreeSid(sid);
            }

            if (winErrorCode > 0) {
                throw new ApplicationException(string.Format("Failed to add right {0} to {1}. Error detail:{2}", accountName, privilegeName, errorMessage));
            }
        }

        public void SetRights(string accountName, IList<string> rights) {
            rights.ToList().ForEach(right => SetRight(accountName, right));
        }

        private static LSA_OBJECT_ATTRIBUTES CreateLSAObject() {
            LSA_OBJECT_ATTRIBUTES newInstance = new LSA_OBJECT_ATTRIBUTES();

            newInstance.Length = 0;
            newInstance.RootDirectory = IntPtr.Zero;
            newInstance.Attributes = 0;
            newInstance.SecurityDescriptor = IntPtr.Zero;
            newInstance.SecurityQualityOfService = IntPtr.Zero;

            return newInstance;
        }
    }

    // Local security rights managed by the Local Security Authority
    public class LocalSecurityAuthorityRights {
        // Log on as a service right
        public const string LogonAsService = "SeServiceLogonRight";
        // Log on as a batch job right
        public const string LogonAsBatchJob = "SeBatchLogonRight";
        // Interactive log on right
        public const string InteractiveLogon = "SeInteractiveLogonRight";
        // Network log on right
        public const string NetworkLogon = "SeNetworkLogonRight";
        // Generate security audit logs right
        public const string GenerateSecurityAudits = "SeAuditPrivilege";
    }
}

PowerShell Part 2 – Installing a new service

Following on from the brief introduction to PowerShell, let’s walk through the installation script…

The script installs a simple Magic Eight Ball service that will return a pseudo-random answer to any question it’s given. The service is written as a WCF service in C#, the files to deploy are available from http://public.me.com/stefsewell/ , have a look in TechEd2010/DEV306-WindowsServerAppFabric/InstallationSource. The folder contains a web.config to set up the service activation and a bin folder with the service implementation. The PowerShell scripts are also available from the file share, look in Powershell folder in DEV306…

Pre-requisite Checking

The script begins by checking a couple of pre-requisites. If any of these checks fail then we do not attempt to install the service, instead the installing admin is told of the failed checks. There are a number of different checks we can make, in this script we check the OS version, that dependent services are installed and that the correct version of the .NET framework is available.

First we need a variable to hold whether or not we have a failure:

$failedPrereqs = $false

Next we move on to our first check: that the correct version of Windows being used:

$OSVersion = Get-WmiObject Win32_OperatingSystem
if(-not $OSVersion.Version.StartsWith('6.1')) {
    Write-Host "The operating system version is not supported, Windows 7 or Windows Server 2008 required."
    $failedPrereqs = $true
    # See http://msdn.microsoft.com/en-us/library/aa394239(v=VS.85).aspx for other properties of Win32_OperatingSystem
    # See http://msdn.microsoft.com/en-us/library/aa394084(VS.85).aspx for additional WMI classes
}

The script fetches the Win32_OperatingSystem WMI object for interrogation using Get-WmiObject. This object contains a good deal of useful information, links are provided above to let you drill down into other properties. The script checks the Version to ensure that we are working with either Windows 7 or Windows Server 2008, in which case the version starts with “6.1”.

Next we look for a couple of installed services:

# IIS is installed
$IISService = Get-Service -Name 'W3SVC' -ErrorAction SilentlyContinue
if(-not $IISService) {
    Write-Host "IIS is not installed on" $env:computername
    $FailedPrereqs = $true
}

# AppFabric is installed
$AppFabricMonitoringService = Get-Service -Name 'AppFabricEventCollectionService' -ErrorAction SilentlyContinue
if(-not $AppFabricMonitoringService) {
    Write-Host "AppFabric Monitoring Service is not installed on" $env:computername
    $FailedPrereqs = $true
}

$AppFabricMonitoringService = Get-Service -Name 'AppFabricWorkflowManagementService' -ErrorAction SilentlyContinue
if(-not $AppFabricMonitoringService) {
    Write-Host "AppFabric Workflow Management Service is not installed on" $env:computername
    $FailedPrereqs = $true
}

A basic pattern is repeated here using the Get-Service command to determine if a particular Windows Service is installed on the machine.

With the service requirements checked, we look to see if we have the correct version of the .NET framework installed. In our case we want the RTM of version 4 and go to the registry to validate this.

$frameworkVersion = get-itemProperty -Path 'HKLM:\SOFTWARE\Microsoft\NET Framework Setup\NDP\v4\Full' -ErrorAction SilentlyContinue
if(-not($frameworkVersion) -or (-not($frameworkVersion.Version -eq '4.0.30319'))){
    Write-Host "The RTM version of the full .NET 4 framework is not installed."
    $FailedPrereqs = $true
}

The registry provider is used, HKLM: [HKEY_LOCAL_MACHINE], to look up a path in the registry that should contain the version. If the key is not found or the value is incorrect we fail the test.

Those are all the checks made in the original script from the DEV306 session, however there is great feature in Windows Server 2008 R2 that allows very simple querying of the installed Windows features. I found this by accident:

>Get-Module -ListAvailable

This command lists all of the available modules on a system, the ServerManager module looked interesting:

>Get-Command -Module ServerManager

CommandType Name Definition
----------- ---- ----------
Cmdlet Add-WindowsFeature Add-WindowsFeature [-Name] [-IncludeAllSubFeature] [-LogPath ] [-...
Cmdlet Get-WindowsFeature Get-WindowsFeature [[-Name] ] [-LogPath ] [-Verbose] [-Debug] [-Err...
Cmdlet Remove-WindowsFeature Remove-WindowsFeature [-Name] [-LogPath ] [-Concurrent] [-Restart...

A simple add/remove/get interface which allows you to easily determine which Windows roles and features are installed – then add or remove as required. This is ideal for pre-requisite checking as we can now explicitly check to see if the WinRM IIS Extensions are installed for example:

import-module ServerManager

if(-not (Get-WindowsFeature ‘WinRM-IIS-Ext’).Installed) {
    Write-Host "The WinRM IIS Extension is not installed"
}

Simply calling Get-WindowsFeature lists all features and marks-up those that are installed with [X]:

PS>C:\Windows\system32> Get-WindowsFeature

Display Name Name
------------ ----
[ ] Active Directory Certificate Services AD-Certificate
[ ] Certification Authority ADCS-Cert-Authority
[ ] Certification Authority Web Enrollment ADCS-Web-Enrollment
[ ] Certificate Enrollment Web Service ADCS-Enroll-Web-Svc
[ ] Certificate Enrollment Policy Web Service ADCS-Enroll-Web-Pol
[ ] Active Directory Domain Services AD-Domain-Services
[ ] Active Directory Domain Controller ADDS-Domain-Controller
[ ] Identity Management for UNIX ADDS-Identity-Mgmt
[ ] Server for Network Information Services ADDS-NIS
[ ] Password Synchronization ADDS-Password-Sync
[ ] Administration Tools ADDS-IDMU-Tools
[ ] Active Directory Federation Services AD-Federation-Services
[ ] Federation Service ADFS-Federation
[ ] Federation Service Proxy ADFS-Proxy
[ ] AD FS Web Agents ADFS-Web-Agents
[ ] Claims-aware Agent ADFS-Claims
[ ] Windows Token-based Agent ADFS-Windows-Token
[ ] Active Directory Lightweight Directory Services ADLDS
[ ] Active Directory Rights Management Services ADRMS
[ ] Active Directory Rights Management Server ADRMS-Server
[ ] Identity Federation Support ADRMS-Identity
[X] Application Server Application-Server
[X] .NET Framework 3.5.1 AS-NET-Framework
[X] AppFabric AS-AppServer-Ext
[X] Web Server (IIS) Support AS-Web-Support
[X] COM+ Network Access AS-Ent-Services
[X] TCP Port Sharing AS-TCP-Port-Sharing
[X] Windows Process Activation Service Support AS-WAS-Support
[X] HTTP Activation AS-HTTP-Activation
[X] Message Queuing Activation AS-MSMQ-Activation
[X] TCP Activation AS-TCP-Activation
...

The right hand column contains the name of the feature to use via the command.

I ended up writing a simple function to check for a list of features:

<#
.SYNOPSIS
Checks to see if a given set of Windows features are installed.

.DESCRIPTION
Checks to see if a given set of Windows features are installed.

.PARAMETER featureSetArray
An array of strings containing the Windows features to check for.

.PARAMETER featuresName
A description of the feature set being tested for.

.EXAMPLE
Check that a couple of web server features are installed.

Check-FeatureSet -featureSetArray @('Web-Server','Web-WebServer','Web-Common-Http') -featuresName 'Required Web Features'

#>
function Check-FeatureSet{
    param(
        [Parameter(Mandatory=$true)]
        [array] $featureSetArray,
        [Parameter(Mandatory=$true)]
        [string]$featuresName
    )
    Write-Host "Checking $featuresName for missing features..."

    foreach($feature in $featureSetArray){
        if(-not (Get-WindowsFeature $feature).Installed){
            Write-Host "The feature $feature is not installed"
        }
    }
}

The function introduces a number of PowerShell features such as comment documentation, functions, parameters and parameter attributes. I don’t intend to dwell on any as I hope the code is quite readable.

Then to use this:

# array of strings containing .NET related features
$dotNetFeatureSet = @('NET-Framework','NET-Framework-Core','NET-Win-CFAC','NET-HTTP-Activation','NET-Non-HTTP-Activ')

# array of string containing MSMQ related features
$messageQueueFeatureSet = @('MSMQ','MSMQ-Services','MSMQ-Server')

Check-FeatureSet $dotNetFeatureSet '.NET'
Check-FeatureSet $messageQueueFeatureSet 'Message Queuing'

To complete the pre-requisite check, after making each individual test the failure variable is evaluated. If true then the script ends with a suitable message, otherwise we go ahead with the install.

Installing the Service

The first step in the installation is to copy the required files from a known location. This is a pull model – the target server pulls the files across the network, rather than having the files pushed on to the server via an administration share or such like [e.g. \\myMachine\c$\Services\].

$sourcePath = '\\SomeMachine\MagicEightBallInstaller\'
$installPath = 'C:\Services\MagicEightBall'

if(-not (Test-Path $sourcePath)) {
Write-Host 'Cannot find the source path ' $sourcePath
Throw (New-Object System.IO.FileNotFoundException)
}

if(-not (Test-Path $installPath)) {
New-Item -type directory -path $installPath
Write-Host 'Created service directory at ' $installPath
}

Copy-Item -Path (Join-Path $sourcePath "*") -Destination $installPath -Recurse

Write-Host 'Copied the required service files to ' $installPath

The file structure is copied from a network share onto the machine the script is running on. The Test-Path command determines whether a path exists an allows appropriate action to be taken. To perform a recursive copy the Copy-Item command is called, using the Join-Path command to establish the source path. These path commands can be used with any provider, not just the file system.

With the files and directories in place, we now need to host the service in IIS. To do this we need to use the PowerShell module for IIS:

import-module WebAdministration # require admin-level privileges

Next…

$found = Get-ChildItem IIS:\AppPools | Where-Object {$_.Name -eq "NewAppPool"}
if(-not $found){
    New-WebAppPool 'NewAppPool'
}

We want to isolate our service into its own pool so we check to see if NewAppPool exists and if not we create it. We are using the IIS: provider to treat the web server as if it was a file system, again we just use standard commands to query the path.

Set-ItemProperty IIS:\AppPools\NewAppPool -Name ProcessModel -Value @{IdentityType=3;Username="MyServer\Service.EightBall";Password="p@ssw0rd"} # 3 = Custom

Set-ItemProperty IIS:\AppPools\NewAppPool -Name ManagedRuntimeVersion -Value v4.0

Write-Host 'Created application pool NewAppPool'

Having created the application pool we set some properties. In particular we ensure that .NET v4 is used and that a custom identity is used. The @{} syntax allows us to construct new object instances – in this case a new process model object.

New-WebApplication -Site 'Default Web Site' -Name 'MagicEightBall' -PhysicalPath $installPath -ApplicationPool 'NewAppPool' -Force

With the application pool in place and configured, we next set-up the web application itself. The New-WebApplication command is all we need, giving it the site, application name, physical file system path and application pool.

Set-ItemProperty 'IIS:/Sites/Default Web Site/MagicEightBall' -Name EnabledProtocols 'http,net.tcp' # do not include spaces in the list!

Write-Host 'Created web application MagicEightBall'

To enable both HTTP and net.tcp endpoints, we simply update the EnabledProtocols property of the web application. Thanks to default endpoints in WCF4, this is all we need to do get both protocols supported. Note: do not put spaces into the list of protocols.

Configuring AppFabric Monitoring

We now have enough script to create the service host, but we want to add AppFabric monitoring. Windows Server AppFabric has a rich PowerShell API, to access it we need to import the module:

import-module ApplicationServer

Next we need to create our monitoring database:

[Reflection.Assembly]::LoadWithPartialName("System.Data")

$monitoringDatabase = 'MagicEightBallMonitoring'
$monitoringConnection = New-Object System.Data.SqlClient.SqlConnectionStringBuilder -argumentList "Server=localhost;Database=$monitoringDatabase;Integrated Security=true"
$monitoringConnection.Pooling = $true

We need a couple of variables: a database name and a connection string. We use the SqlConnectionStringBuilder out of the System.Data assembly to get our connection string. This demonstrates the deep integration between PowerShell and .NET.

Add-WebConfiguration -Filter connectionStrings -PSPath "MACHINE/WEBROOT/APPHOST/Default Web Site/MagicEightBall" -Value @{name="MagicEightBallMonitoringConnection"; connectionString=$monitoringConnection.ToString()}

We add the connection string to our web application configuration.

Initialize-ASMonitoringSqlDatabase -Admins 'Domain\AS_Admins' -Readers 'DOMAIN\AS_Observers' -Writers 'DOMAIN\AS_MonitoringWriters' -ConnectionString $monitoringConnection.ToString() -Force

And then we create the actual database, passing in the security groups. While local machine groups can be used, in this case I’m mocking a domain group which is more appropriate for load balanced scenarios.

Set-ASAppMonitoring -SiteName 'Default Web Site' -VirtualPath 'MagicEightBall' -MonitoringLevel 'HealthMonitoring' -ConnectionStringName 'MagicEightBallMonitoringConnection'

The last step is to enable monitoring for the web application, above we are setting a ‘health monitoring’ level which is enough to populate the AppFabric dashboard inside the IIS manager.

Set-ASAppServiceMetadata -SiteName 'Default Web Site' -VirtualPath 'MagicEightBall' -HttpGetEnabled $True

Last of all we ensure that meta data publishing is available for our service. This allows us to test the service using the WCFTestClient application.
